Como efetuar o Jailbreak do seu iPhone 3GS usando o PwnageTool [Mac]

POST

MAIL

Posted February 15, 2010 at 12:03am by iClarified

Esse tutorial vai te mostrar como efetuar o jailbreak do seu iPhone 3GS usando o PwnageTool para o Mac. o PwnageTool agora suporta a ultima versão de firmware, 3.1.3.

Passo 1

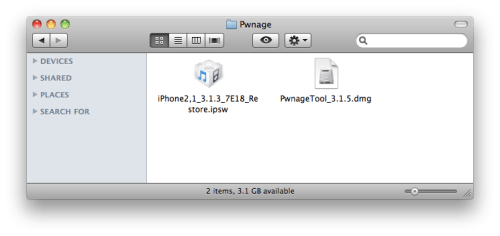

Faça uma pasta chamada "Pwnage" no seu desktop. Nela, você precisara de algumas coisas. O PwnageTools 3.1.5 que pode ser encontrado aqui ou aqui

Você também vai precisar do firmware 3.1.3 para o iPhone.
3.1.3 (3GS): iPhone2,1_3.1.3_7E18_Restore.ipsw

Quando estiver baixando o arquivo IPSW, é melhor fazer com o firefox já que o safare na maioria das vezes executa a auto-extração do mesmo.

Como efetuar o Jailbreak do seu iPhone 3GS usando o PwnageTool [Mac]

Passo 2

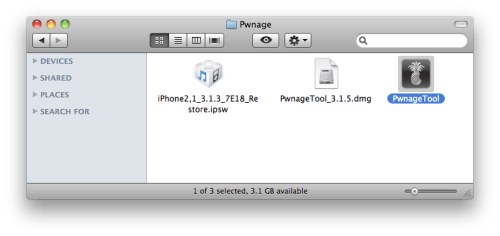

De um clique duplo para montar o PwnageTool 3.1.5 então arraste o executavel para a pasta Pwnage.

Então, dentro da pasta Pwnage, clique duas vezes para executar o PwnageTool.

Cllique Ok na seguinte tela.

Passo 3
Clique em Expert Mode no menu superior.

Passo 4
Clique para selecionar seu iPhone. Uma marcação vai aparecer na imagem referente ao seu iPhone.

Passo 5
Clique na seta azul para continuar. Você será levado á pagina do "Browse for IPSW".
Em alguns casos ele pode encontrar automaticamente o IPSW. Se a ferramenta não o fizer automaticamente, encontre o arquivo IPSW que você precisa clicando em Browse for IPSW....

Clique para selecionar o IPSW desejado. Uma marca vai aparecer perto dele. Então, clique na seta azul para continuar.

Passo 6
Você será trazido a um menu com 7 opções. Clique em General e depois, clique no botão azul.

As configurações em General permitem qeu você decida o tamanho da partição. Selecione Activate the phone se você não estiver numa operadora oficial e depois, clique na seta azl.

Lembrete*: Desmarque Activate se você tiver um iPhone legitimamente ativado numa operadora oficial.

Lembrete:: Talvez você tenha que aumentar o tamanho da partição de root um pouco. Minha primeira tentativa falhou até que eu aumentasse o tamanho para aproximadamente 695 MB.

As configurações do Bootneuter estão indisponíveis para o iPhone 3G. Clique na seta azul.

As configurações do Cydia te permitem criar pacotes customizados para que você não precise instalá-los manualmente mais tarde.

Clique para selecionar a aba Download packages. Então, clique em Refresh para exibir todos os pacotes disponíveis. Clique 2x no pacote que você quer que ele será baixado e estará disponível na aba Select Packages.

Marque aqueles que desejar e clique na seta azul.

O menu Custom Packages Settings mostra uma lista de configurações de pacotes para o seu IPSW customizado. Por agora, deixe essas configurações como estão. Clique na seta azul para continuar.

A tela Custom Logos Settings lhe permite adicionar suas próprias imagens de boot. Clique em Browse para selecionar a sua tela de boot e recovery. Se desejar usar a do iClarified, elas podem ser encontradas aqui: Boot Logo, Recovery Logo

Lembre-se das regras para elas: formatos RGB ou Grayscale com canal Alpha e dimensões até 320x480...

Clique na seta azul para continuar.

Passo 7
Agora você esta pronto para iniciar o processo de pwnage. Clique em Build para selecionar e depois clique na seta azul para começar.

Passo 8

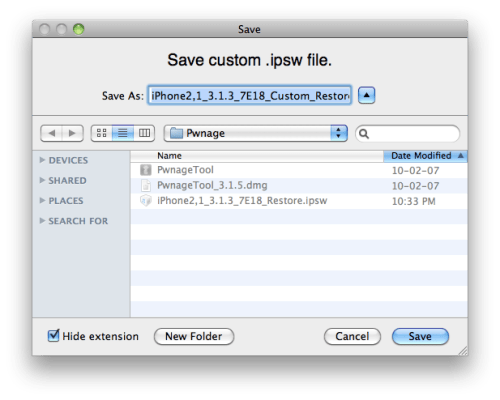

Você sera questionado para salvar seu IPSW customizado. Salve na pasta Pwnage que você criou no seu desktop.

Seu IPSW esta sendo construido agora. Aguarde aproximadamente 10 min.

Você será questionado pela senha do administrador do computador. Entre com a mesma e clique em OK.

Você será questionado se seu iphone já foi pwned antes. Se não tem certeza, clique em NO.

Passo 9
Se seu iphone ainda não estiver conectado, faça-o agora.

Depois de executar os processos iniciais, seu iPhone será colocado em modo de recuperação. Clique OK para fechar a mensagem lhe dizendo isso.

No iTunes também vai aparecer um pop-up lhe dizendo que detectou um iPhone em modo de recuperação.

Passo 10
No iTunes, segure a tecla Alt/Option e clique em Restaurar.

Passo 11

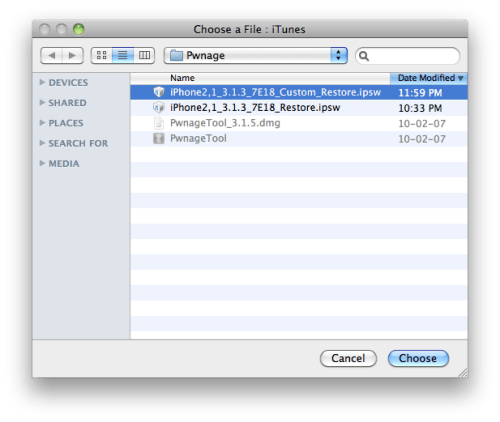

Navegue até a pasta Pwnage no seu desktop usando a tela de dialogo que aparecer. Selecione o IPSW que foi criado (iPhone2,1_3.1.3_7E18_Custom_Restore.ipsw) e clique em Open.

Passo 12
o iTunes agora vai restaurar o firmware no seu iPhone. Isso deve levar aproximadamente 10 minutos. Quando terminado, seu iphone será reiniciado no OS 3.1.3!

***Obrigado: Agradeço ao Dev-Team pelo trabalho duro deles em fazer esse jailbreak e tutorial possíveis.
