Posted November 28, 2010 at 11:44pm by iClarified

Estas son las instrucciones sobre como hacer el jailbreak a tu iPhone 3G en el firmware 4.2.1 con RedSn0w para Windows. La versión para Mac de este tutorial es aqui.

No actualice al iOS 4.2.1 si ud. quiere hacer el unlock, ya que aun no hay un unlock para el baseband del iOS 4.2.1's

Si usted tiene un iPhone 3G con el nuevo bootrom sólo será capaz de realizar un jailbreak tethered en este momento. Esto significa que usted necesita a Redsn0w cada vez que haga un arranque (boot) en el dispositivo.

Paso uno

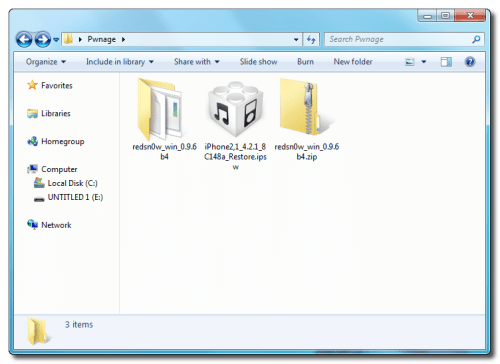

Cree una carpeta en el escritorio llamada Pwnage

Descargue RedSn0w desde aqui y coloquelo en la carpeta Pwnage. Igualmente, descargue la ultima version del firmware 4.2.1 desde el link que figuran mas abajo y pongalo en la misma carpete.

4.2.1 (3GS): iPhone2,1_4.2.1_8C148a_Restore.ipsw

Extraiga el ejecutable redsn0w.exe desde el RedSn0w.zip y coloquelo en la misma carpeta.

Como realizar el Jailbreak en su iPhone 3GS usando RedSn0w (Windows) [4.2.1]

Paso dos
Conecte el Iphone a su computadora y ejecute iTunes.

Selecciones su Iphone desde la lista de dispositivos que aparece a la izquierda. Ahora, presione la tecla Shift y haga click sobre el boton Restore. El Restore es preferible, ya que no se crea ningun espacio perdido en su Iphone

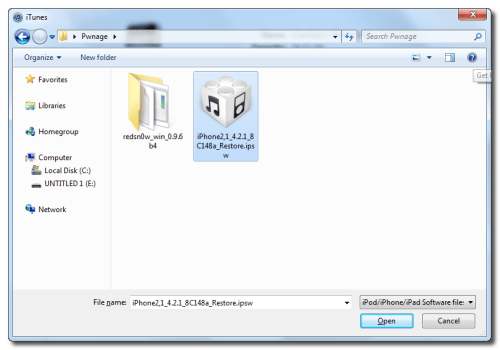

Vaya hasta la carpeta Pwnage creada en el escritorio y seleccione el archivo firmware 4.2.1 ipsw. Haga click en el boton Seleccionar para continuar

Paso tres
Una vez que el iTunes haya terminado de actualizar el firmware seleccionado, ejecute redsn0w de la descargado y extraido anteriormente.

Paso cuatro

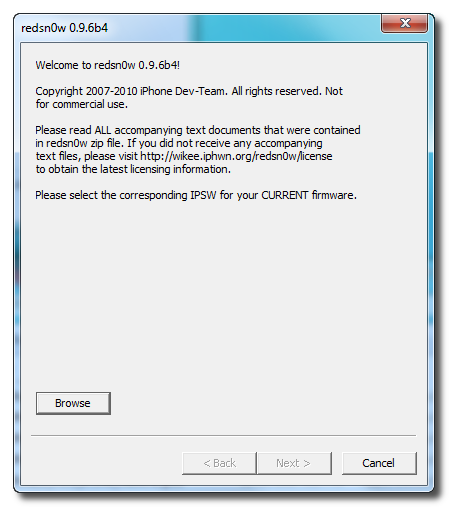

Una vez que RedSn0w abra, presione el boton Browse

Paso cinco
Seleccione el archivo del firmware 4.2.1 ipsw que descargamos anteriormente y haga click en el boton Open.

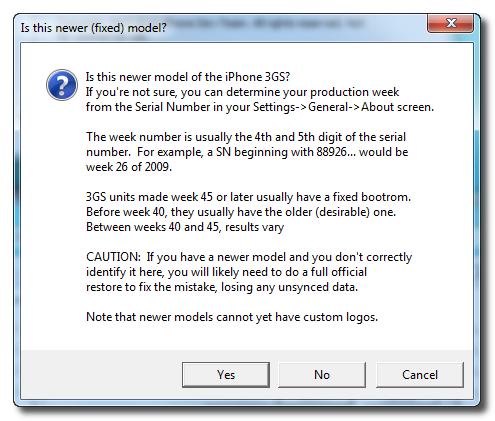

Se le preguntara si su dispositivo es un modelo nuevo. Si es asi, presione el boton Yes; de otra forma, haga click en No. En estos momentos, solo se puede hacer un jailbreak untethered en los modelos viejos.

Paso seis

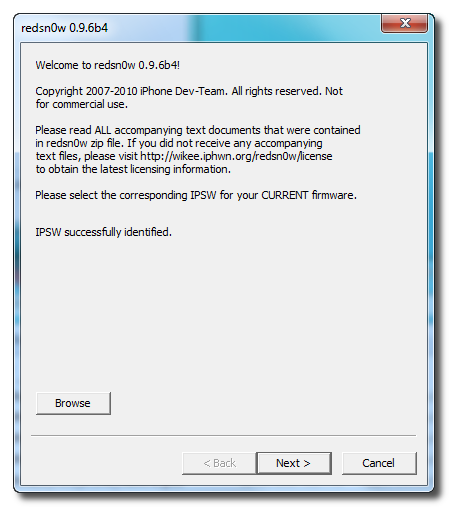

Una vez que el firmware haya sido verificadohaga click en el boton Next pra continuar.

Paso siete
RedSn0w ahora preparara los datos para el jailbreak

Paso ocho
Desde esta ventana, podra seleccionar las opciones del jailbreak que ud desee.

Verbose boot muestra informacion detallada en el momento del arranque de su dispositivo, esta opcion es normalmente requerida por usuarios avanzados.

Asegurece de que Cydia este seleccionado. Para este tutorial, tambien seleccionaremos Custom boot logo y Custom recovery logo.

Cuando haga click para seleccionar cada una de estas dos ultimas opciones (custom boot logo y custom recovery logo) un ventana de dialogo de windows se abrira solicitandole que elija las imagenes correspondientes. Localize las imagenes que vaya a usar y presione el boton Open.

* Recuerde que las reglas para los archivos de imagenes de boot son: RGB o formato Grayscale con Alpha channel y un tamaño maximo de 320x480. Si desea usar los de iClarified los puede encontrar aqui: Boot Logo, Recovery Logo

Haga click en el boton Next para continuar

Paso nueve

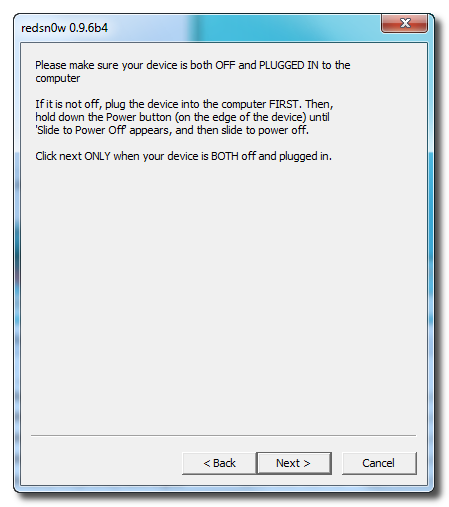

Ahora conecte el Iphone a la computadora pero verifique que este apagado antes de continuar y presione el boton Next

Paso diez

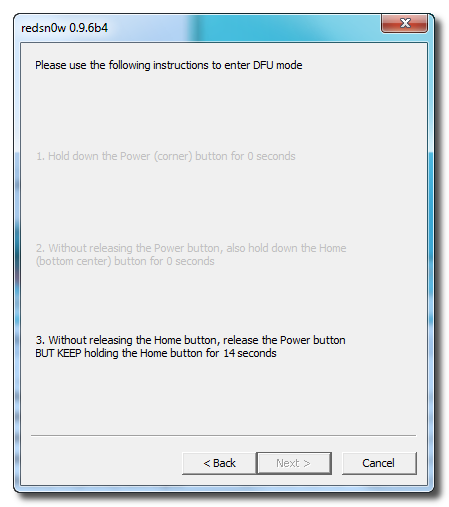

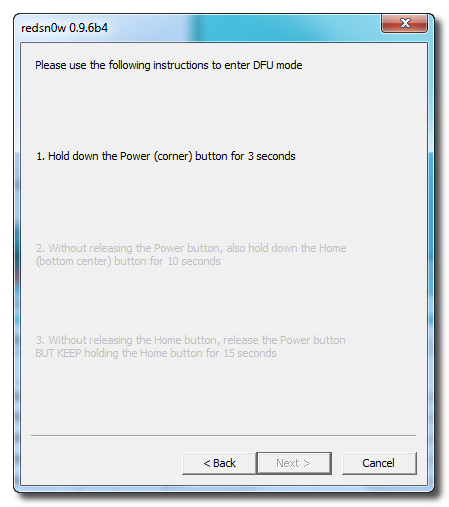

RedSn0w ahora lo guiara paso a paso para arrancar el iphone el el modop DFU here

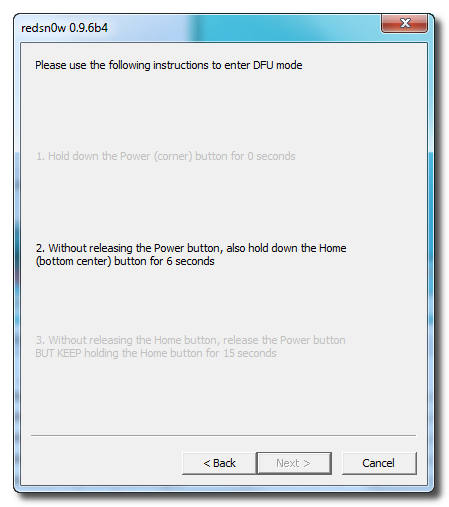

Presione ambos botones a la vez Home y Power durante 10 segunos.

Libere el boton Power pero continue presionando el boton Home hasta que RedSn0w detecte el dispositivo.

Paso once

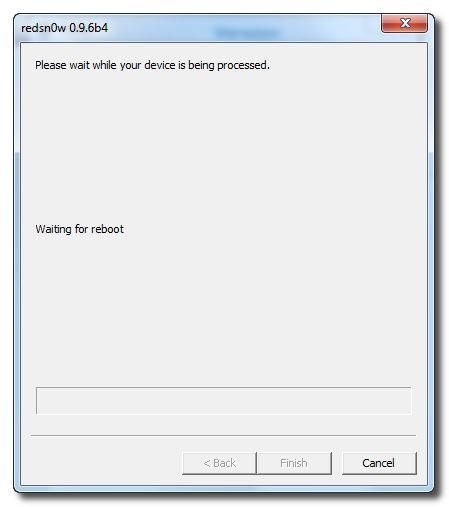

Su Iphone ahora se reiniciara

Paso doce

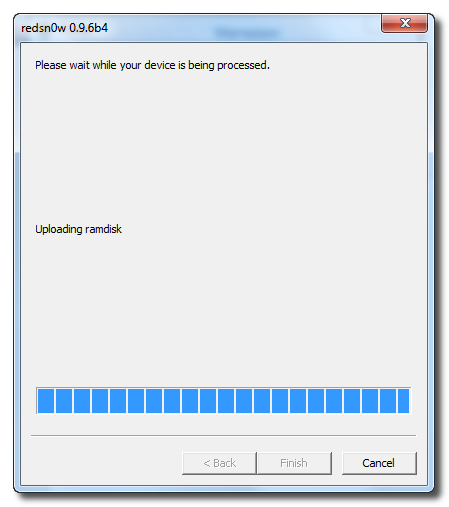

RedSn0w ahora comenzara a cargar el nuevo RAM Disk y el Kernel.

Paso trece

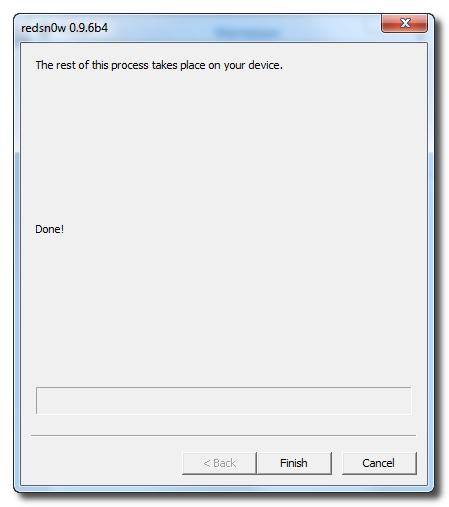

Una vez completado se le avisara que RedSn0w ah terminado. Haga click en el boton Finish. Cuando su Iphone termine se reiniciara, esto lleva aproximadamente 5 minutes y quedara hecho el jailbreak con el icono de Cydia en el SpringBoard.

IMPORTANTE:

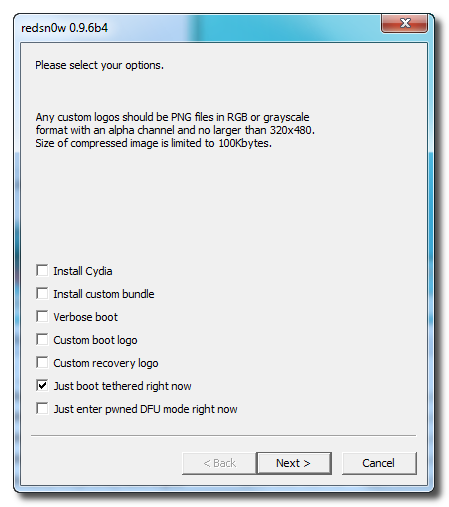

Si tiene un nuevo modelo de Iphone 3GS y realiza un tethered jailbreak, podra usar Redsn0w para ayudarlo a arrancar su dispositivo con el jailbreak realizado. Simplemente seleccione Just boot tethered right now desde las opciones de Redsn0w y haga click en Next.

*Como de costumbre, un gran agradecimiento para el iPhone Dev-Team, por su ardua labor y contribucion a la comunidad iPhone
