How to Jailbreak Your 2.0 3G iPhone (Windows) [Updated]

***************************************************************************************
This tutorial has been updated for WinPwn 2.5. You can find the new instructions here
***************************************************************************************

These are instructions on how to jailbreak your 2.0, 3G iPhone using Windows and WinPwn.

Please keep these notes in mind...
- You MUST do a full uninstall of winpwn before installing the new version
- Make sure you have the latest version of iTunes ( Currently 7.7)
- WinPwn uses 300MB of ram at peak due to the ipsw being extracted in memory
- You must first click browse and load an IPSW to use WinPwn (i thought this was clear)
- For 2.0 only the *5A347_Restore.ipsw files are valid. The 345 image will not work
- If you see Failed to load image catalog/payload catalog, this is fine and won't cause problems
- If you already have service with AT&T do not activate or install Youtube Fix


To follow this tutorial you will need to have iTunes 7.7 installed (make sure to reboot). Also, you may need to download and install .Net Framework if you are on Windows XP.

Step One
Create a folder on your desktop called Pwnage. In it place Winpwn 2.0.0.4 or Winpwn 2.0.0.4 and the latest 2.0 firmware.

Step Two
Install WinPwn by extracting the downloaded zip from Step One and running the setup executable. Once WinPwn has been installed it will put a shortcut icon on your desktop. Double click to launch the application.


Step Three

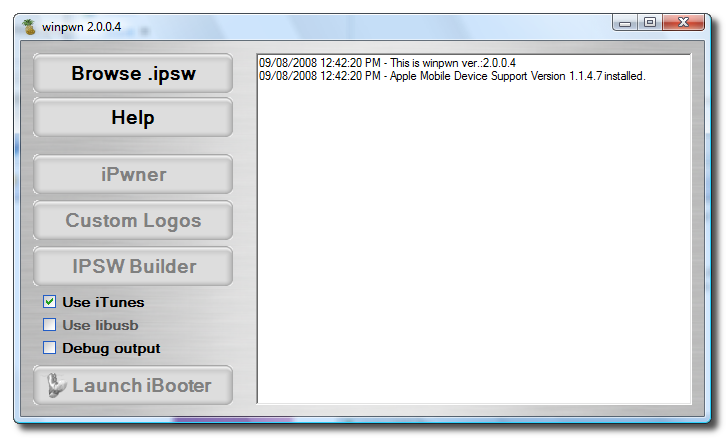

Once WinPwn has opened click the Browse .ipsw button.


Step Four

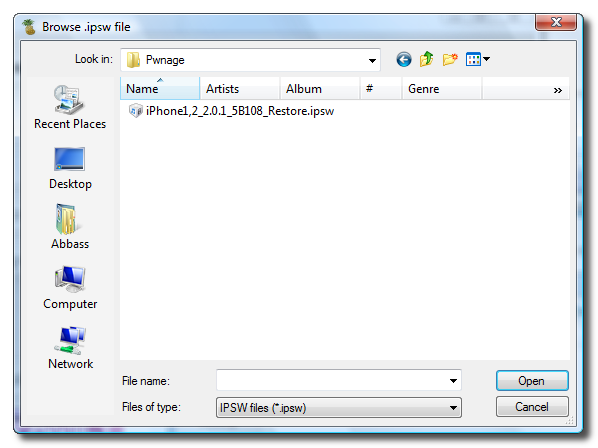

Locate the 2.0 firmware file (iPhone1,2_2.0.1_5B108_Restore.ipsw) from the Pwnage folder on your desktop and click Open.


Step Five

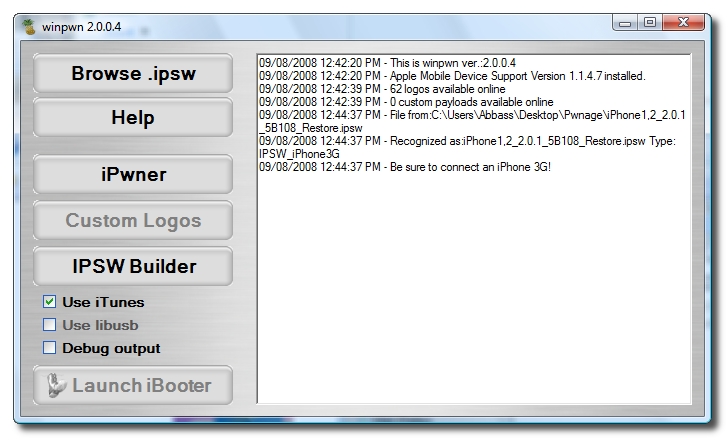

WinPwn will check the firmware to make sure its valid. Now click the IPSW Builder button.


Step Six

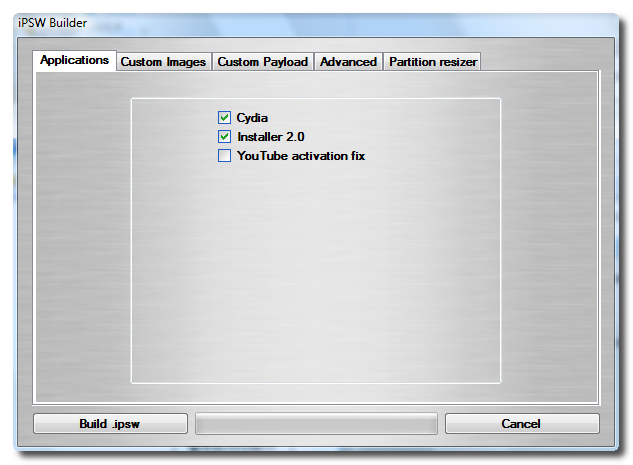

The IPSW Builder window will open to the Applications tab. Check to select Cydia and if you are not on AT&T then check to select YouTube Fix.


Step Seven

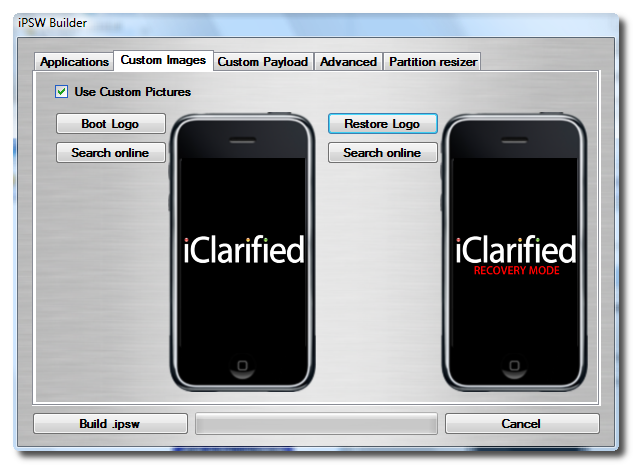

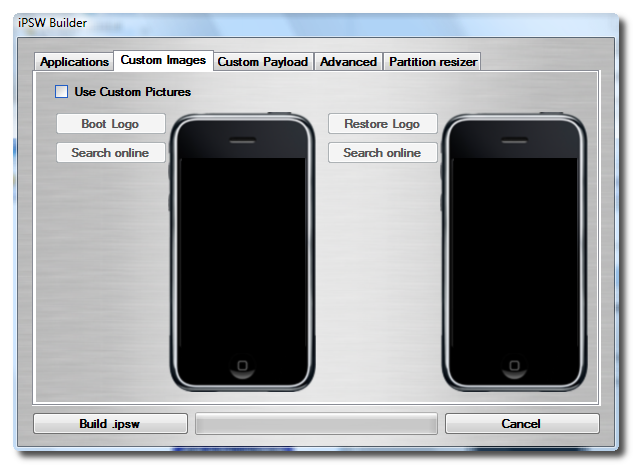

Click to select the Custom Images tab. From here you can can select
your own boot images.


Remember the rules for them: RGB or Grayscale format with Alpha channel and dimension bellow 320x480. If you would like to use the iClarified ones they can be found here: Boot Logo, Recovery Logo


Step Eight

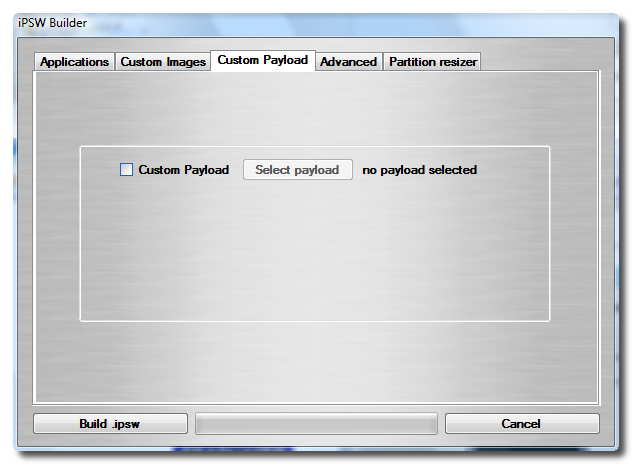

Click to select the Custom Payload tab. From this tab you can select custom payloads you have created to be automatically installed. We will discuss this in a future tutorial.


Step Nine

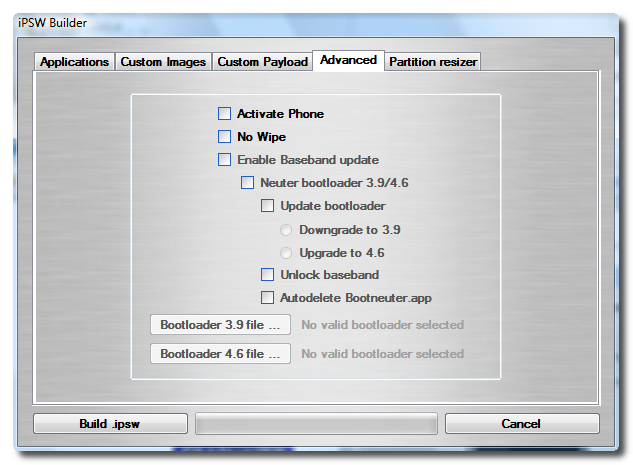

Click to select the Advanced tab. Check to select: Activate Phone.

NOTE*: Deselect Activate if you have an iPhone legitimately activated on an official carrier.


*****FOR THE PARTITION SIZER, SET IT TO 512MB!!! IF YOU DO NOT SET IT TO SOMETHING ABOUT 500MBS, IT WILL NOT WORK*****
Step Ten

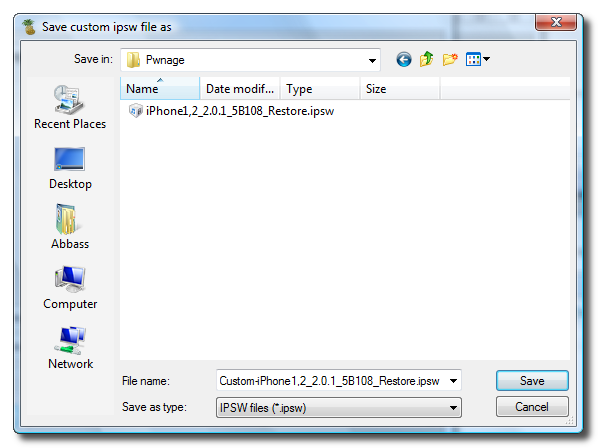

Click the Build .ipsw button at the bottom left to build your custom ipsw firmware file. Navigate to your Pwnage folder and click the Save button.


Step Eleven

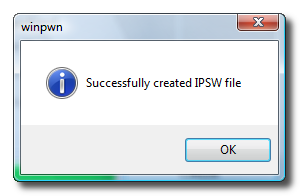

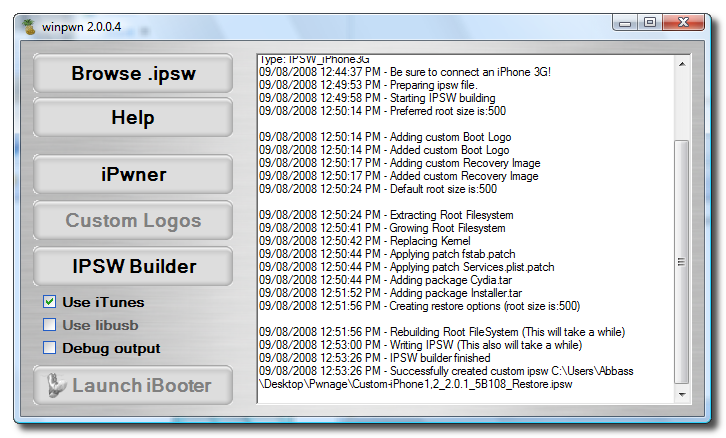

Once WinPwn has finished creating your custom firmware then click the iPwner button from the main menu.




Step Twelve

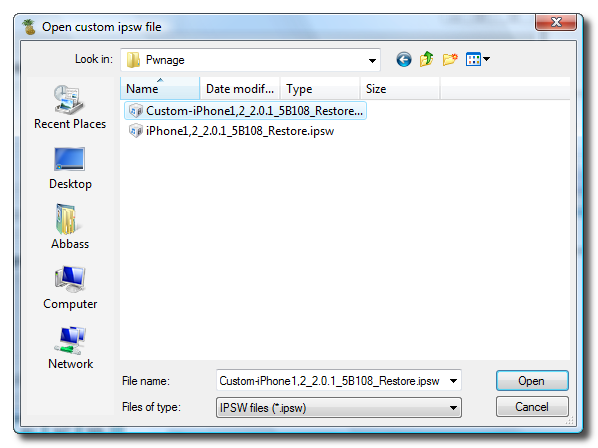

Select the custom firmware file we just built from the Pwnage folder on your desktop and click the Open button.


Step Thirteen

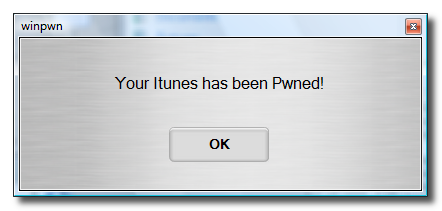

You will then be notified that your iTunes has been Pwned!


Step Fourteen
Next we will need to put the iPhone in the DFU mode and restore using iTunes. To put your iPhone into DFU mode please follow these instructions!

Step Fifteen

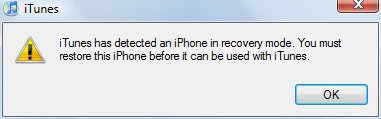

iTunes will prompt you that you are in recovery mode.

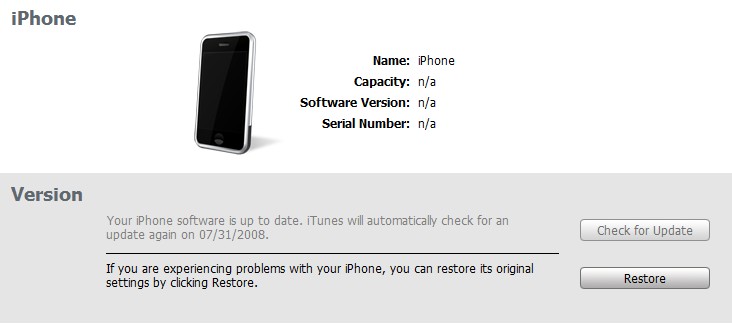

Hold down Shift and click the Restore button in iTunes.

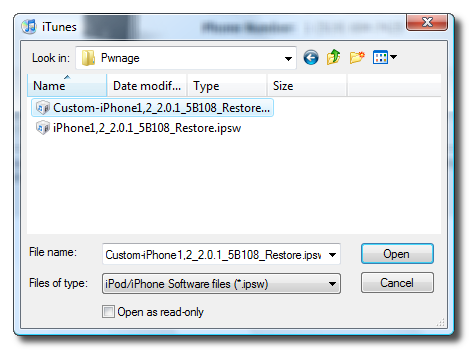

A popup window will appear asking you to select your firmware. Select the Custom firmware file we saved in the Pwnage folder and then click the Open button.


Your iPhone will now be restored to the jailbroken 2.0 firmware!
