Como liberar tu AppleTV utilizando ATV USB Creator

POST

MAIL

Posted October 1, 2008 at 11:58pm by iClarified

Esta guía muestra cómo plantar un parche de instalación SSH usando ATV USB Creator y liberar tu Apple TV.

Antes de empezar necesitarás un dispositivo USB (pendrive, etc), particionado como GUID y formateado como Mac OS Plus (con registro). Se puede encontrar más información sobre esto aquí.

Paso Uno
Descarga ATV USB Creator desde aquí y colócalo en el escritorio.

Paso Dos

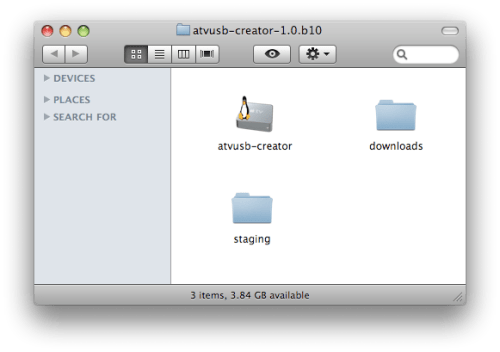

Doble clic para descomprimir el archivo atvusb-creator-1.0.b10.zip. Se creará una carpeta llamada atvusb-creator1.0.b10.

NOTA***: Asegúrese que no queden espacios en el nombre de la carpeta!

Como liberar tu AppleTV utilizando ATV USB Creator

Paso Tres
Conecte el dispositivo USB al computador

Paso Cuatro

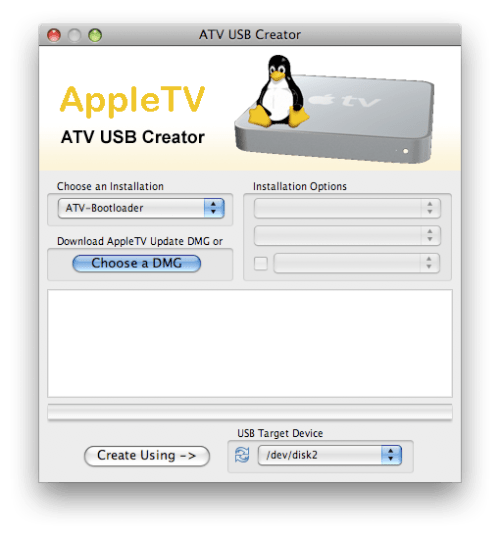

Dentro de la carpeta atvusb-creator 1.0.b10, doble clic en el icono atvusb-creator

Paso Cinco

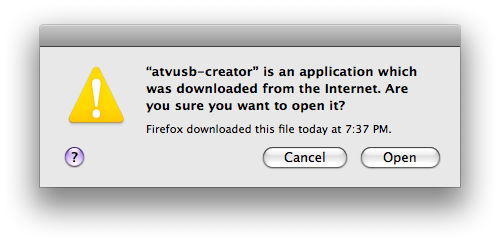

Aparecerá un mensaje informando que esta aplicación ha sido descargada de Internet. Click en el botón Open.

Paso Seis
En el menú desplegable Choose an Installation seleccione ATV-Patchstick.

Paso Siete
En el menú desplegable Installation Options seleccione ssh tools

Paso Ocho

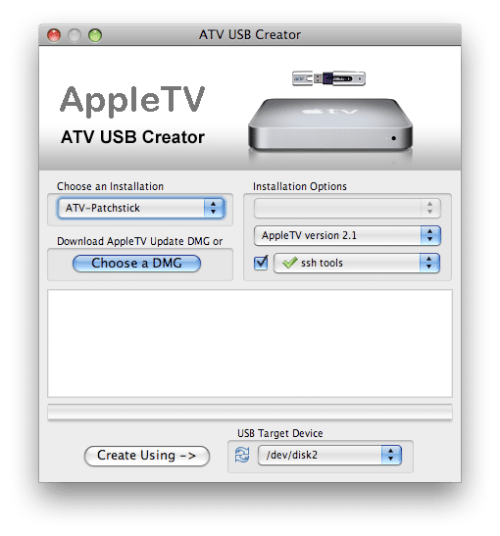

Asegúrese de que esté seleccionado el dispositivo USB que corresponde.

Paso Nueve
Presione el botón Create Using -->.

Paso Diez

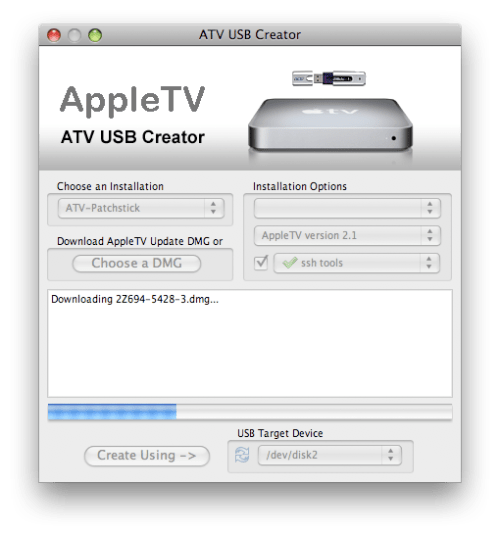

Ahora ATV USB Creator va a descargar la actualización DMG de AppleTV. Si preferías seleccionar un archivo ya descargado podrías haber utilizado el botón Choose a DMG.

Paso Once

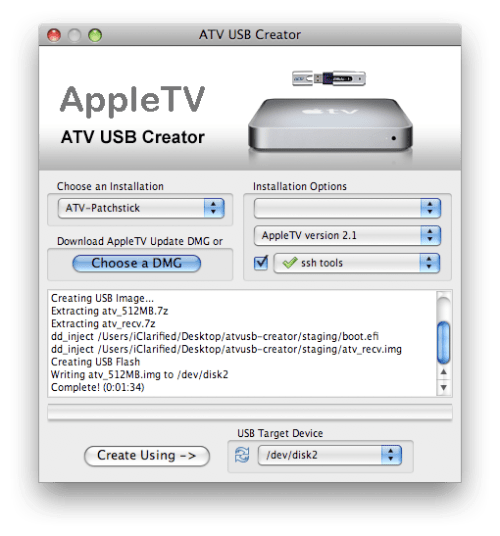

Cuando el parche haya sido aplicado completamente, el programa lo informará.

Paso Doce

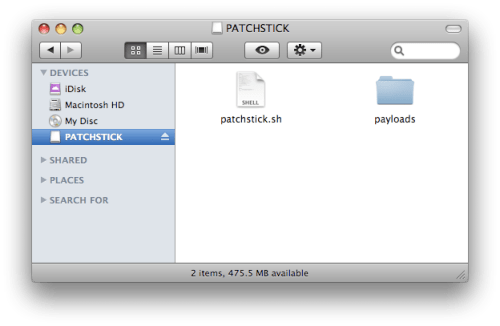

Note que su dispositivo USB ha sido renombrado y ahora contiene algunos archivos ...

Paso Trece
Saque el dispositivo USB y conéctelo al AppleTV.

Paso Catorce
Mantenga apretado los botones Menu y - en el control remoto del AppleTV mientras se reinicia.

Paso Quince
Note que ahora el Parche comienza a hacer su trabajo e instala SSH en el AppleTV.

Paso Dieciseis
Una vez que haya terminado, elimine el USB del AppleTV y desconete el dispositivo. Conéctelo nuevamente para reiniciar.

Step Eighteen
Ahora puedes acceder a tu AppleTV vía SSH, utilizar y agregar nuevas funciones o, hacer los cambios que se te ocurran. Podrás encontrar varios tutoriales interesantes para AppleTV aquí

AGRADECIMIENTOS***: Muchas gracias a sdavilla por crear esta gran aplicación!

NOTAS***: Algunos usuarios han reportado problemas con ciertos tipos de dispositivos USB. Si usted presenta problemas, simplemente intentelo con otro dispositivo. Nosotros postearemos más información en la medida que la vayamos recopilando!

Follow iClarified

KKFW - October 8, 2015 at 5:11pm

Found a solution to Error 13 here: https://github.com/davilla/atv-bootloader/issues/41

Reply · Like

NickGP - June 20, 2015 at 1:44pm

I have tried this at least 10 times will not work

JRF - February 9, 2015 at 5:26am

Hi...I'm getting the following error: Creating USB Flash Disk... umount_disk settling delay (10 seconds) partition the target disk umount_disk settling delay (10 seconds) install recovery onto target disk Unable to mount recovery: GetMasterBlock: Error 13 opening /dev/rdisk2s2 GetMasterBlock: Error 13 opening /dev/rdisk2s2 mount_hfs: Permission denied install_recovery failed Failed! (0:01:25) And I've tried this on four different sticks...thoughts?

Paulo Matsui - December 17, 2012 at 11:12pm

Great stuff. Thanks. Worked fined as a charm. Such a shame Boxee is not supported anymore. But as a workaround I DL the XeeBo skin for the XBMC and it is as good as the original. Thank you again!

Alexzuno - January 13, 2012 at 6:53pm

It´s frozen on the apple symbol and the led is blinking orange, no error or anything, help!!!!

Gerardo - July 10, 2010 at 9:22pm

Does the Apple TV jailbreak do something to make it work with a standard tv, in colod?

igirl - January 7, 2010 at 12:23pm

ATV USB Creator failed for me on the "Create Using" step - Downloading 2Z694-5573-24.dmg... Download failed: HTTP Error 404: Not Found I have a brand new Apple TV (probably v3.0.1) coming today - I suspect this patchstick may not work with it anyway... :-/

pakinto - May 29, 2013 at 5:24am

Same here, is there an updated link anywhere?

Gody - November 2, 2009 at 4:25am

how to jailbraik FW 3.0 ?

Same question here, I have 3.0.2

christian - October 30, 2009 at 8:07pm

Anyone have updated to 3.0 with ATV USB creator?

Wayne - October 31, 2009 at 3:07am

I have just updated to V3.0. ATV USB Creator seems to patch the system fine, but you don't get an XBMC link or anything and none of the software installed during patching seems to either appear in the menus or work when you select it. I would think that Apple have closed off some of the loopholes that allows the software to be patched.

igirl - January 7, 2010 at 5:31pm

how about 3.0.1?????

Ray - October 11, 2009 at 7:14pm

I keep on getting the same error code - and I have tried 4 different USB flashdrives. Anyone know what the problem is? Here is what appears in the ATV USB Creator window: 2Z694-5660-029.dmg selected Creating USB Flash Disk... umount_disk settling delay (10 seconds) partition the target disk umount_disk settling delay (10 seconds) install recovery onto target disk Unable to mount image: hdiutil: attach failed - Resource busy install_recovery failed Failed! (0:00:49)

Nicolas - July 10, 2009 at 2:35pm

Im trying to do it but when I click create using, it give me back this message Downloading 2Z694-5573-24.dmg... Download failed: HTTP Error 404: Not Found You can try again to resume your download Please help me

Thierry - May 9, 2009 at 3:43pm

Hi, I've tried the full process without any success. I have an ATV with version 2.3.1 and using Leopard 10.5.6. My usb disk has been formated (renamed patchstick) and configured usb creator v.10 When I reboot my atv (menu + '-'), i have the screen where I need to choose the language and then screen resolution and finally atv asking for restart. Any idea how i can fix this ??

jeremy - May 4, 2009 at 1:33am

Go to http://code.google.com/p/atvusb-creator/ to get the newest version of atvusb-creator.

Eva - February 15, 2009 at 12:17pm

I finally did it and everything works fine (playback from USB stick, Boxee etc.). The only problem I have now: Video playback in YouTube and Podcasts does not work any more! I only get the sound of the video, but no image ..! What can I do? Is there a problem with the codecs maybe? Thanks for your help!

Mansari - February 12, 2009 at 9:23am

Do the instructions miss Step 17 or i am missing something?

Dale - February 13, 2009 at 6:56pm

I have downloaded the atvusb-creator to my desktop on my ibook, but when I double click on the icon to open the file it just flashes quickly, but does not open. I have downloaded this program several times thinking that it might not have downloaded and unzipped right, but each time it does the same thing...any ideas?

mansari - February 14, 2009 at 2:29am

Try this code. it worked flawlessly for me- http://code.google.com/p/atvusb-creator/

Andy - January 2, 2009 at 11:31pm

Is this compatible with Leopard?

Jim Angus - November 13, 2008 at 3:46pm

How do you tell if the "jailbreak" was successful? A follow up. If successful, the stream of text will end with a line that indicates success. I was NOT successful until I checked the ATV USB Creator Website and downloaded a newer version. The newer version worked. I can now SSH into my AppleTV. Unfortuantely, I can't use the features installed in FrontRow. Why? I am the victim of Hughesnet broad band service. I live in a rural area where satellite DSL is the only option. Satellites have "latency", the time it takes the signal to go into space and back. That messes up most downloads and touching applications. So the ATV can't download the software that I need. I'll have to do it manually which will be a challenge for an SSH novice...

Jim Angus - November 12, 2008 at 5:40pm

How do you tell if the "jailbreak" was successful? This would be a nice addition to the tutorial. I followed the steps using 2.1. I rebooted with the patchstick and the appleTV displayed a lot of code, then stalled. After about 10 minutes the screen went black. It has been about an hour... was I successful or did something go wrong? I hate to take out the stick and reboot without knowing whether it just needs more time...

J Teddy - October 28, 2008 at 8:34pm

spincast - Did you try installing boxee first, then everything else you wanted? If not, I would give that a try and let us know your results.

spincast - October 28, 2008 at 4:11pm

At first I had trouble with my 2GB SanDisk Cruzer, then I reformatted in "Mac OS X Extended (journaled)" format and it worked fine. I'm on 10.5.5 with an atv on 2.2. The problem I am now stuck with is this: I started with a factory restore, then I found that the patchstick/Boxee process put me at 2.0.2. Everything worked fine. I installed Couch Surfer 0.4, and it worked fine. I then went to upgrade through the normal aTV process and that brought me to 2.2, but all of the added features (Boxee, sshd, and Couch Surfer) were gone. Back to where I started. Is there a way to have everything? Boxee, sshd, and 2.2?
