How to Unlock a 1.1.1 or 1.1.2 Upgraded iPhone *UPDATED*

UPDATE***: December 07, 2007. I have updated this tutorial to no longer require downgrading to 1.0.2. This should save a bit of time and also removes the need to use Fugu.

These are instructions are on how to unlock a 1.1.1 iPhone or an iPhone that has been upgraded to 1.1.2 firmware. These instructions do not work for a 1.1.2 iPhone new from the store.

If your firmware is 1.1.1 please use iTunes to restore to latest firmware(1.1.2) before starting this tutorial! You need to do this otherwise the unlocker used in this tutorial won't work. Also your phone needs to be virginized if you have ever unlocked it before.


DOWNGRADE TO 1.1.1
Step One
For this you will need iNdependance 1.3 beta, iTunes 7.5, iPhone Firmware 1.1.1, and MobileDevice 7.4.2 Framework.
- Update iTunes to get the latest version.
- Download iNdependance from here: iNdependence_v1.3_beta2.dmg
- Download MobileDevice 7.4.2 Framework from: MobileDevice_7_4_2.framework.zip
- Download iPhone Firmware 1.1.1 from: here

Step Two
Double click iNdependence_v1.3_beta2.dmg to mount the disk image. Drag the iNdependence application to your Applications folder.


Step Three

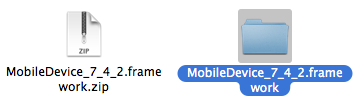

Double click the MobileDevice 7.4.2 Framework zip file that you downloaded. This will extract a folder called "MobileDevice_7_4_2.framework".


Step Four

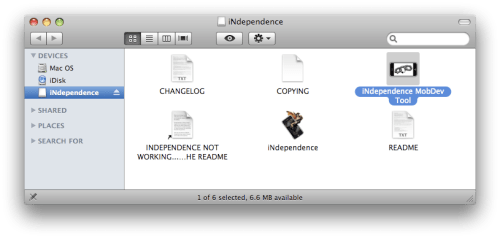

Run the "iNdependence MobDev Tool" application which was included when you downloaded iNdependence.

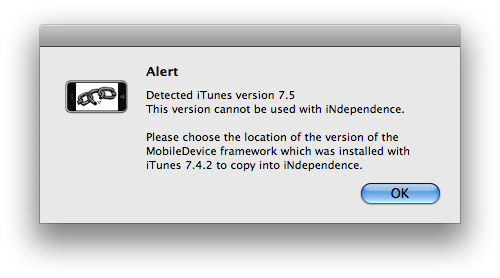

An alert will appear indicating that the tool can't be run with iTunes 7.5. Click the Ok button.

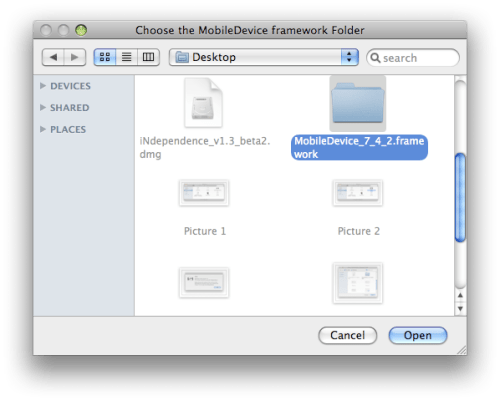

Another popup will appear asking you to select the "MobileDevice_7_4_2.framework" folder. Navigate to where you saved the folder and select it. Then click the Open button.

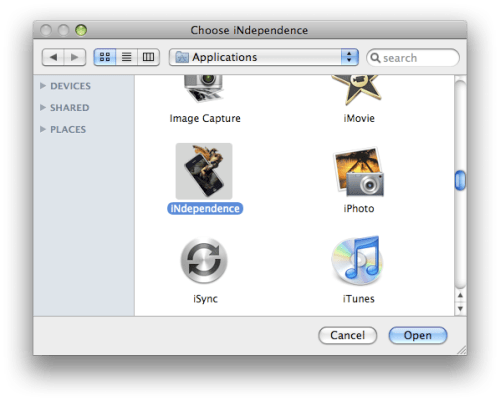

Another popup window will appear asking you to select the iNdependence Application. Navigate to your applications folder then select the iNdependence Application. Click Open to continue.

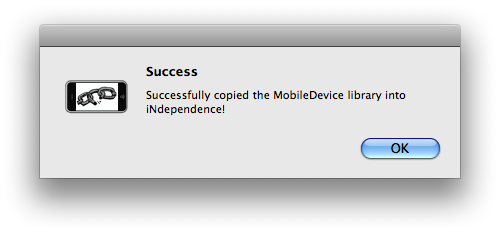

A dialog box will appearing letting you know that you have success! Click the Ok button to finish.


Step Five
Connect your iPhone to your Mac. Press and hold Home and Power button of your iPhone at the same time. Once the screen turns black, release the power button but keep on holding the Home button until Apple logo changes to the restore screen.


Step Six

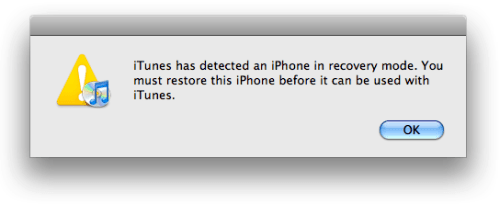

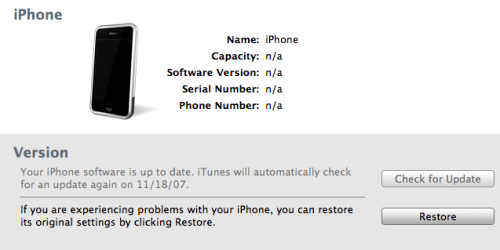

iTunes will then detect an iPhone in restore mode.


Hold down the Option key and click Restore.

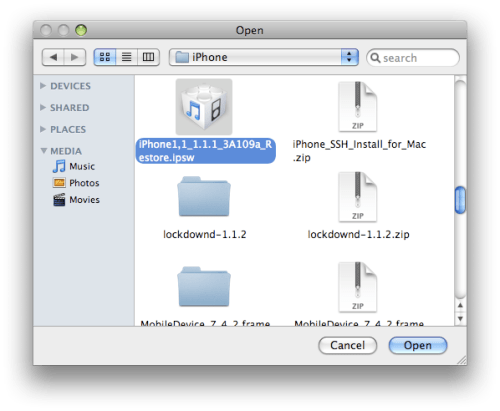

A dialog window will appear asking you to select the firmware to restore to. Select the 1.1.1 firmware we downloaded earlier (iPhone1,1_1.1.1_3A109a_Restore.ipsw)


At the end of the restore you will get Error 1015. This is okay. Simply click the Ok button.


Step Seven
Press and hold Home and Power button of your iPhone at the same time. Once the screen turns black, release the power button but keep on holding the Home button until Apple logo changes to the restore screen.


Step Eight
iTunes will then again detect an iPhone in restore mode.


Step Nine
Eject your iPhone and Quit iTunes.

Step Ten

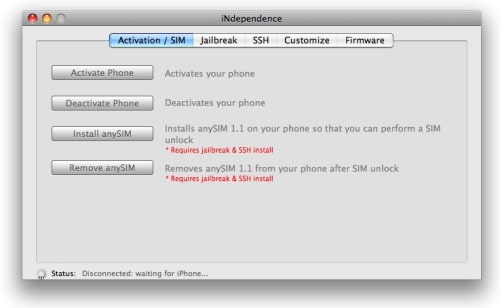

Open iNdependance by double clicking its icon in Applications.


Step Eleven
iNdependence will after a short time take your iPhone out of recovery mode. If you get an error or it doesn't seem to be working then restart the iPhone and try it again. You might also try to disconnect the usb cable and plug it back in.


Once it is successfully out of DFU mode you will see the Activate Phone screen displayed on your iPhone.


Step Twelve
Quit Independence.

JAILBREAK 1.1.1
Step One

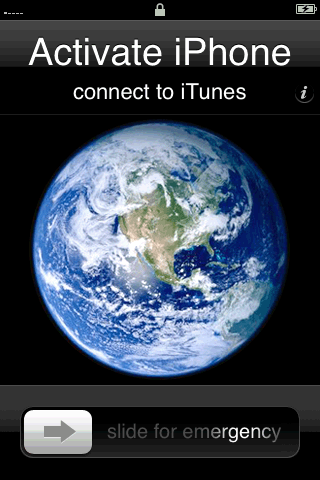

At the "Activate iPhone" screen move the slider to the right for emergency calling.


Step Two

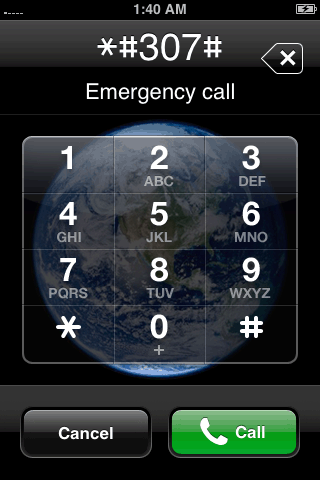

Dial "*#307#" then press the Call button.


Step Three
You will hear the phone call itself. Use the back arrow to clear the number you just enter. Now dial "0" then press the Call button.


Step Four

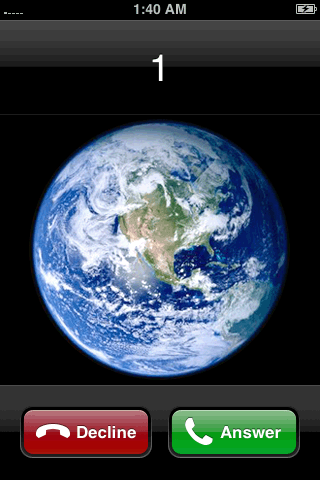

Now you will be able to see the incoming call. Press the Accept button.


Step Five
Now press the Hold button to put the call on hold.


Step Six
The phone will call itself again. This time press the Decline button.


Step Seven

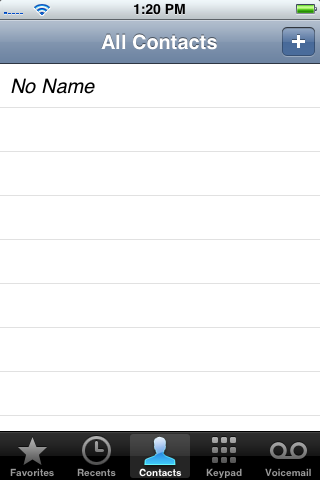

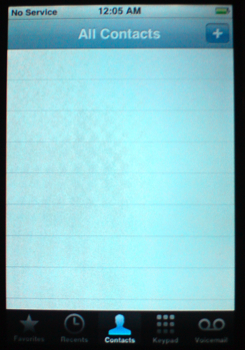

We are now presented with the keypad again. Press the Contacts tab at the bottom. We now are presented with an empty contacts menu. Click the plus(+) button to add a new contact.


Step Eight

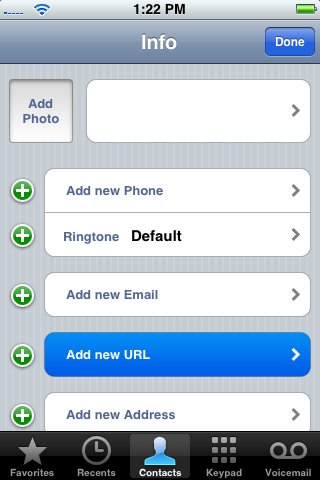

Press Add New URL.


Step Nine

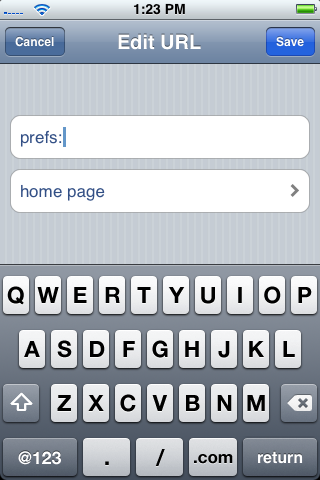

Input prefs: as the url then press the Save button.


Step Ten

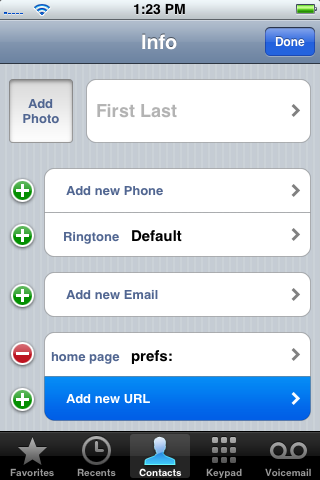

Press Add New URL again.


Step Eleven

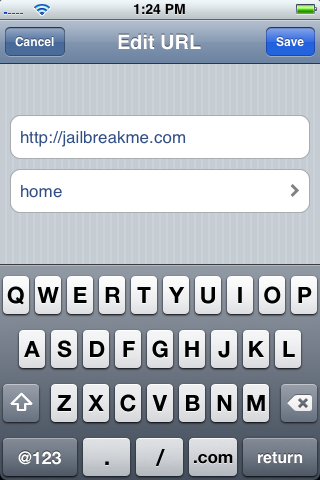

Input http://jailbreakme.com as the url then press the Save button.

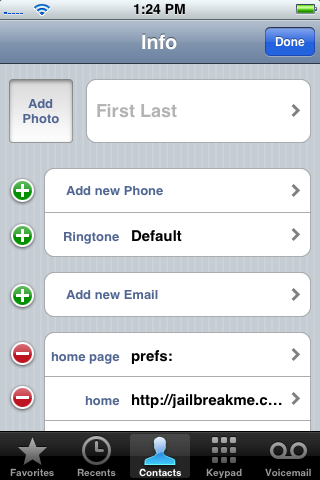

Press the Done button to finish adding the contact.


Step Twelve

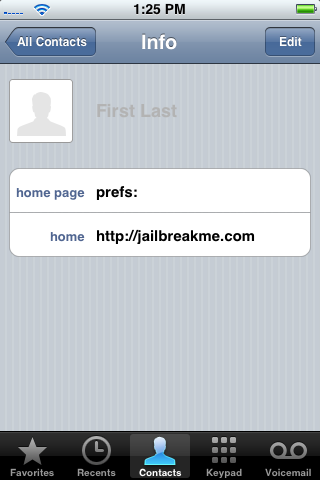

Now in the contact view you will see the 2 urls. Press the prefs: url.


Step Thirteen

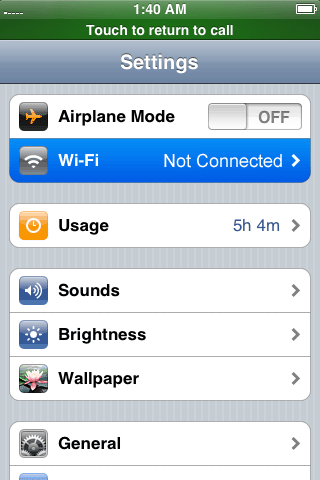

This will bring up the iPhone's Settings Menu. Select your wireless network from the Wi-Fi category. Press the Settings button at the top left to go back to the Settings Menu.


Step Fourteen

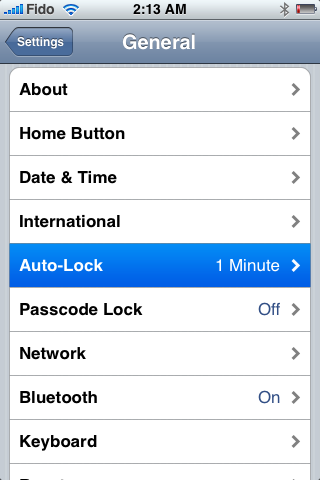

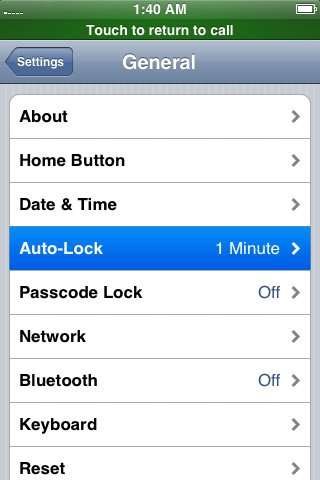

Select the General category from the Settings Menu. Then select the Auto-Lock subcategory.

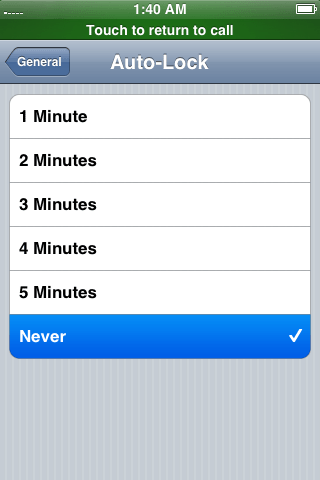

Press to select Never from the list of Auto-Lock times.


Press the Settings button at the top left to return to the settings window.

Step Fifteen
Press the Home button. At the "Activate iPhone" screen move the slider to the right for emergency calling.


Step Sixteen

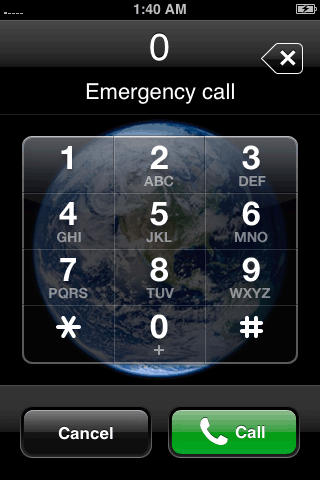

Now dial "0" then press the Call button.


Step Seventeen
Now you will be able to see the incoming call. Press the Accept button.


Step Eighteen
Now press the Hold button to put the call on hold.


Step Nineteen
The phone will call itself again. This time press the Decline button.


Step Twenty
We now are presented with our contacts menu. Press to select the contact we added.


Step Twenty One

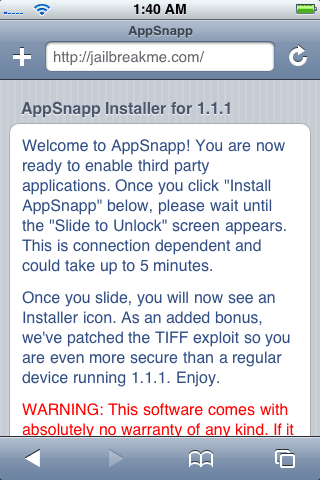

Press the http://jailbreakme.com url. This will open Safari and take you to jailbreakme.com


Step Twenty Two

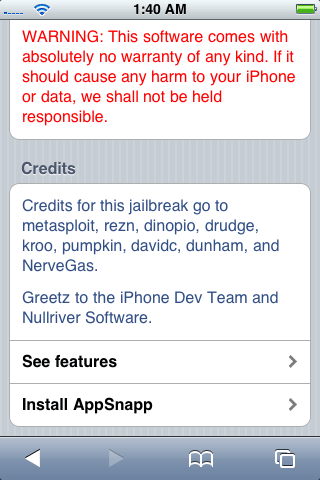

Scroll down to the bottom of the page and press Install AppSnapp.



Phone will return to activation screen, but don't panic, just wait. iPhone should automatically restart after almost a minute. When the phone starts again, it should no longer say Slide to emergency, but rather Slide to Unlock. This means it was successful!

UNLOCK 1.1.1
Step One
Press to select Settings from your springboard.


Step Two

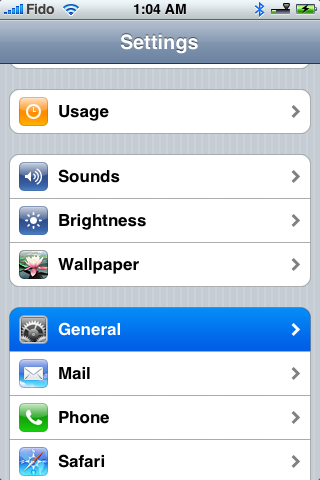

Press to select General from the list of categories.


Step Three
Press to select Auto-Lock from the General menu.


Step Four

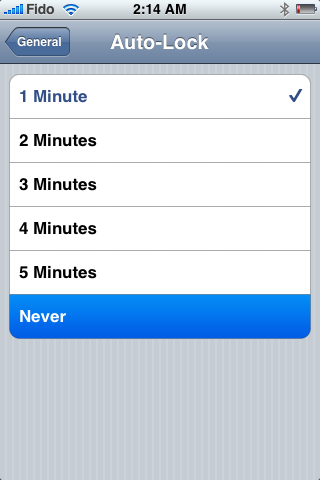

Press to select Never from the list of Auto-Lock times.


Step Five

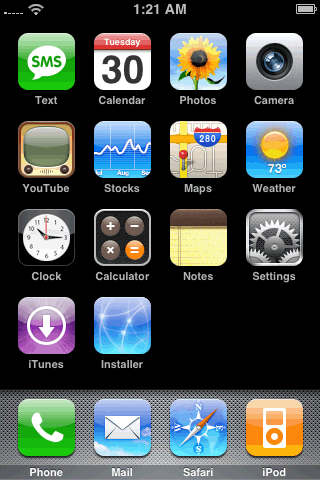

Press the Home button to return to your springboard.

Step Six

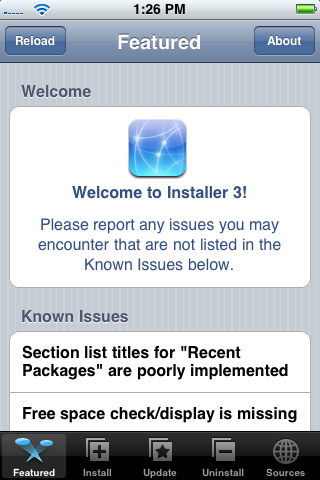

Press to select Installer from your springboard.


Step Seven

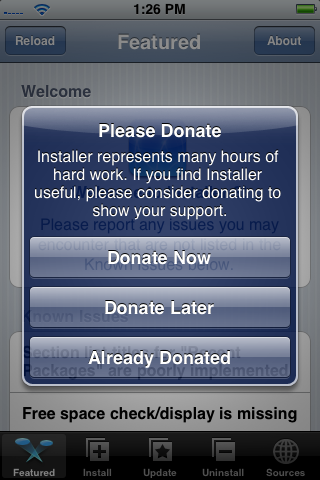

Press Donate Later to continue into the Installer app. Note: Come back later and donate as this app is helping you out a ton!


Step Eight
Press to select the Install tab at the bottom of the screen.


Step Nine

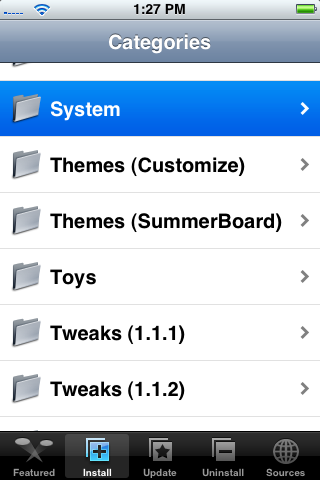

Press to select the System category.


Step Ten

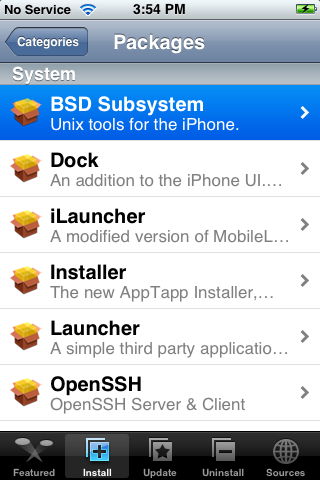

Press to select BSD Subsystem from the list of packages.


Step Eleven
Press to select the Install button at the top right.

Step Twelve

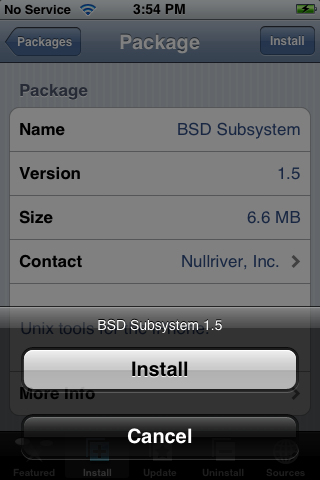

Press the Install button to confirm installation.


Step Thirteen

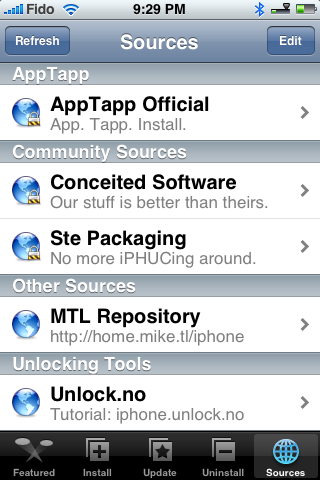

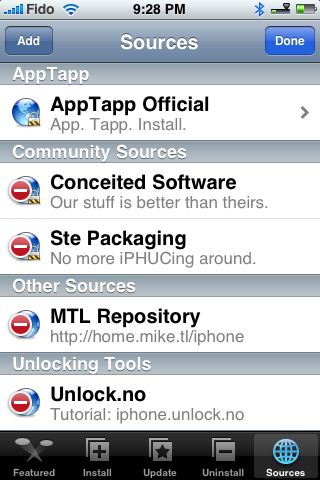

Once installation is complete press to select the Sources tab at the bottom right of the screen.

Step Fourteen
Press to select the Edit button at the top right hand corner.


Step Fifteen
Press to select the Add button at the top left hand corner.


Step Sixteen

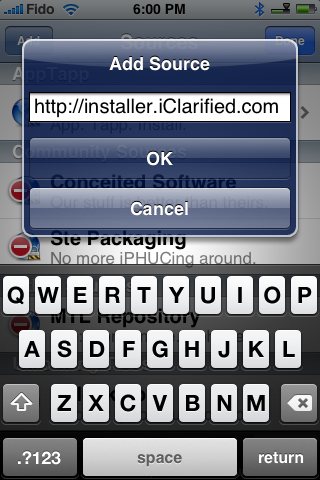

Enter http://installer.iClarified.com as the source url and press the Ok button.


Step Seventeen
Press the Done button at the top right of the screen.


Step Eighteen
Press the Install tab at the bottom of the screen.


Step Nineteen

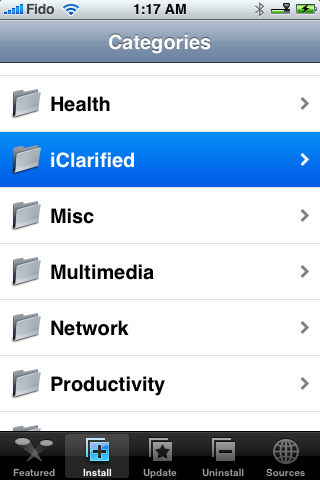

Press to select iClarified from the list of categories.


Step Twenty

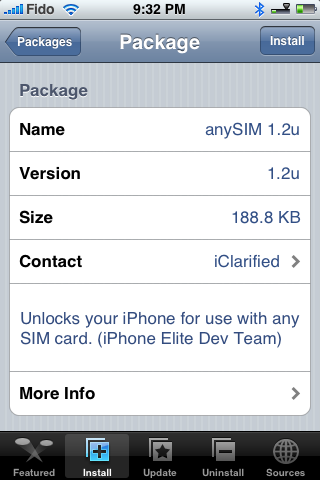

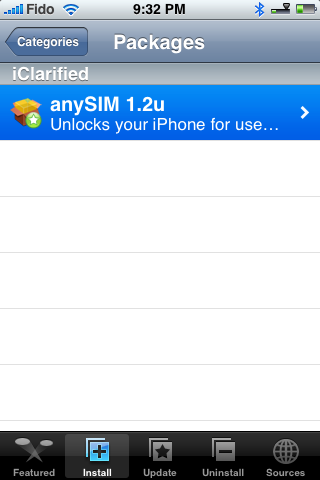

From the list of packages press to select anySIM 1.2u.


Step Twenty One
Press the Install button at the top right of the screen.


Step Twenty Two

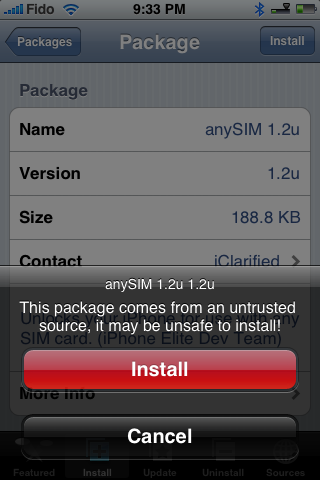

Press to select the red Install button that appears.


Step Twenty Three
Once install is complete return to the springboard by pressing the Home button.

Step Twenty Four

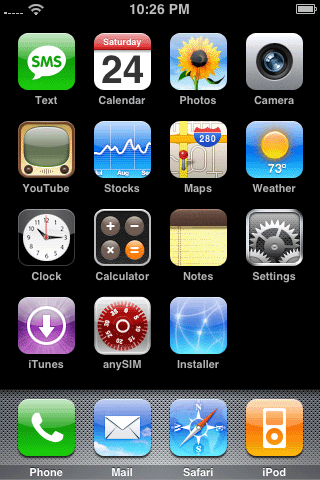

Press the anySIM icon to begin the unlock.

Step Twenty Five

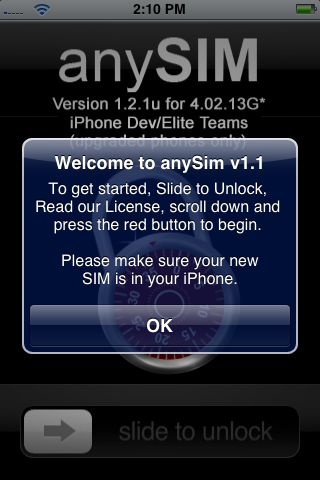

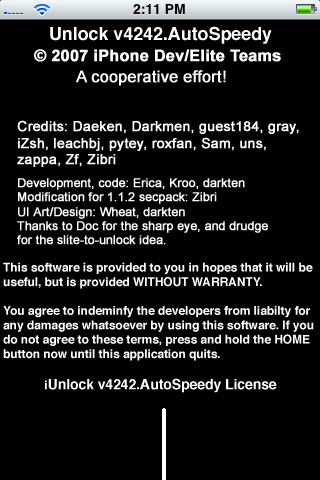

Make sure your authorized SIM is in the phone and press the Ok button.


Step Twenty Six

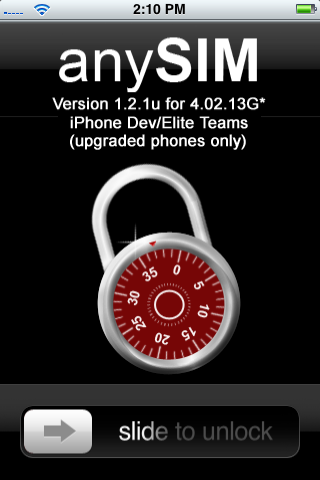

Slide to slider to right to begin unlocking


Step Twenty Seven

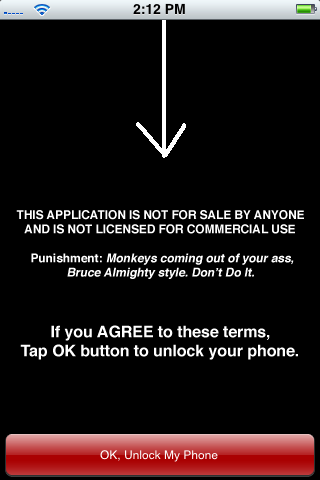

Scroll down and press Unlock my phone




Step Twenty Eight

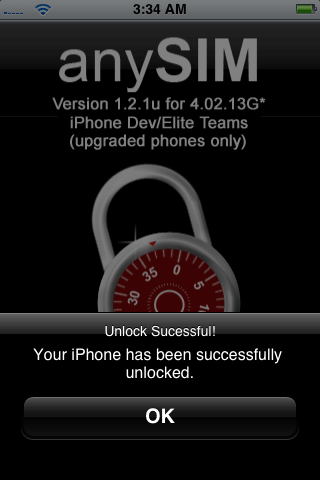

Once its done click the Ok button. and you will be returned to your springboard.


UPGRADE TO 1.1.2
- Download the Jailbreak 1.1.2 package from: 1.1.2-jailbreak.zip.
- Download the 1.1.2 Firmware from: here

At this point normally we would have installed OktoPrep from Installer (Tweaks 1.1.1 Category). The new jailbreakme.com is supposed to do this for you now. I've heard a couple reports of the site not doing it so I've left this in the tutorial for now!

Step One
Connect the iPhone to your Mac. Then launch iTunes and select the iPhone.


Hold down the Option key and click the Update button to update your iPhone to 1.1.2.

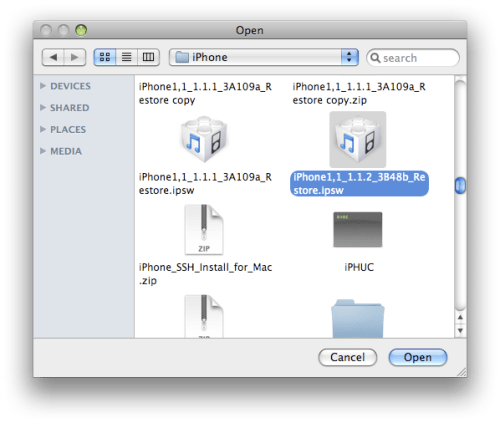

A dialog window will appear asking you to select the firmware to restore to. Select the 1.1.2 firmware we downloaded earlier (iPhone1,1_1.1.2_3B48b_Restore.ipsw)


Quit iTunes once the update is complete.

Step Two

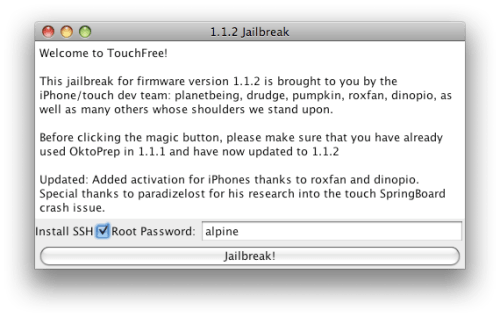

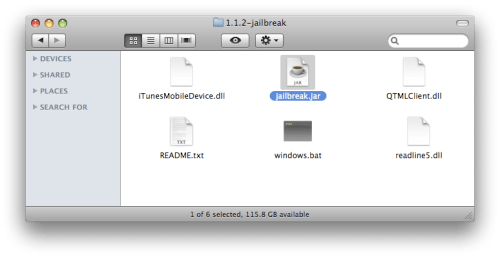

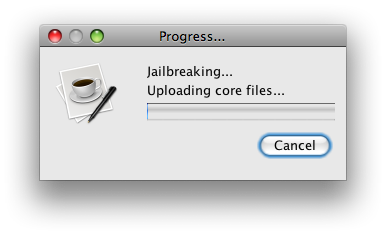

Double click the 1.1.2-jailbreak.zip file you downloaded to extract it. Double click jailbreak.jar to begin the jailbreak process.


Select the checkbox to install SSH. You can leave the password as alpine or change it to whatever you want.




Step Three

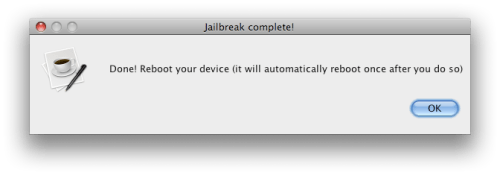

Once the Done popup window appears reboot your device by holding the power button down for 3 seconds and moving the slider that appears to the right. Press the power button again to turn it back on.




Wait about a minute and the iPhone will boot then reboot by itself a second time.

YAY :) you should now have an activated, jailbreaked, unlocked iPhone!

NOTES:
I had to piece together many of these screenshots because I no longer have an iPhone with the old bootloader. In the steps to add iClarified as a source in Installer you will notice I am connected to Fido. In your case you will not have a connection so please ignore that. Some screenshots have been located from around the net. Most notably I'd like to thank Mark from HacktheiPhone for many.

THANKS:
Well, I also really need to thank all the developers who have been working like crazy to make this tutorial even possible. Im really not even sure who all I have to name but thanks to everyone! iPhone Dev Team, iNdependence Creator (operator), iPhone Elite Dev Team, ...
