How to Jailbreak Your iPhone 3GS Using RedSn0w (Windows) [4.3.5]

These are instructions on how to jailbreak your iPhone 3GS on the 4.3.5 firmware using RedSn0w for Windows. The Mac version of this tutorial is here. If you are on 4.3.3 or lower make sure you do NOT update to iOS 4.3.5. Use the untethered JailbreakMe instead. You can find the appropriate JailbreakMe tutorial here.

Make sure not to update to iOS 4.3.5 if you need an unlock as one is not yet available. Also please note that this jailbreak is tethered for those on the new bootrom.

Step One

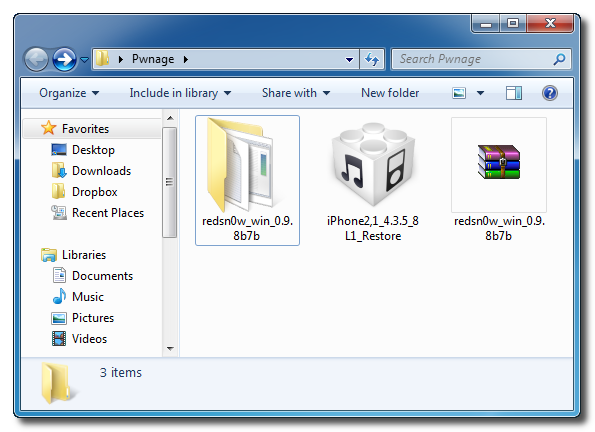

Create a folder on your desktop called Pwnage


Download RedSn0w 0.9.8b7b from here and place it in the Pwnage folder. Likewise, download the latest 4.3.5 firmware from below and place it in the same folder.

4.3.5 (3GS): iPhone2,1_4.3.5_8L1_Restore.ipsw

Extract the RedSn0w zip file into the same folder.


Step Two
Connect your iPhone to the computer and launch iTunes.

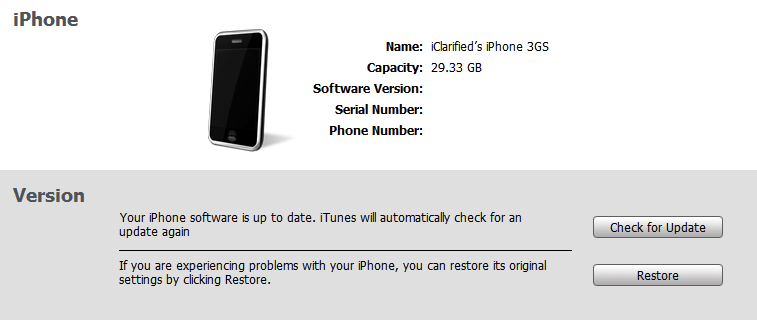

Select your iPhone from the list of devices on the left. Now hold down Shift and click the Restore button. Restore is preferred as it won't create any wasted space on your iPhone.

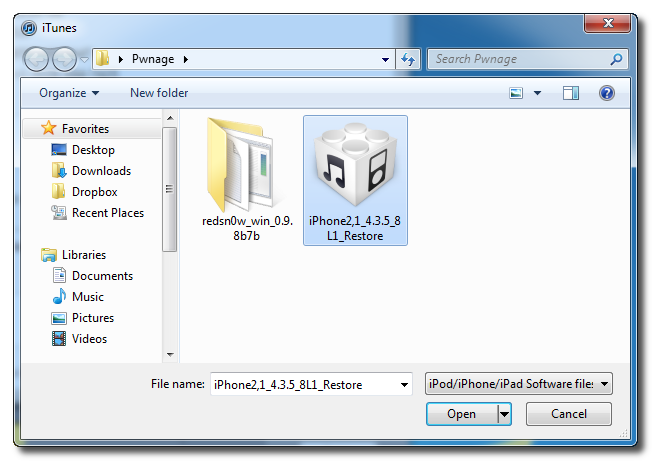

Navigate to the Pwnage folder on your desktop and select the 4.3.5 firmware ipsw. Click the Open button to continue.


Step Three
Once iTunes has finished updating your iPhone to the desired firmware open the Pwnage folder on your desktop and launch the redsn0w application from the redsn0w folder we extracted earlier.

**Windows 7 users need to run RedSn0w as an administrator in Vista compatibility mode. You can do this by right clicking the executable and selecting Properties from the contextual menu


Step Four

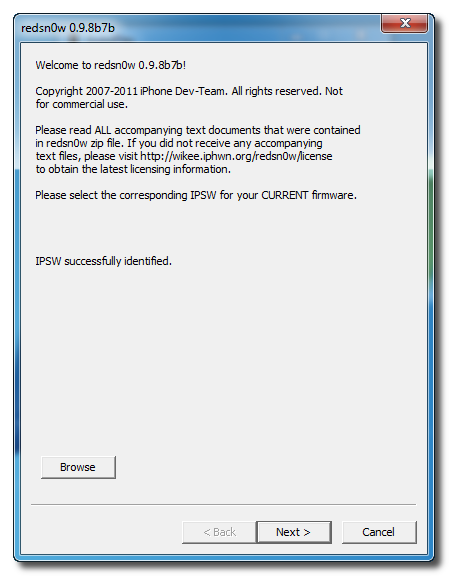

Once RedSn0w opens click the Browse button


Step Five

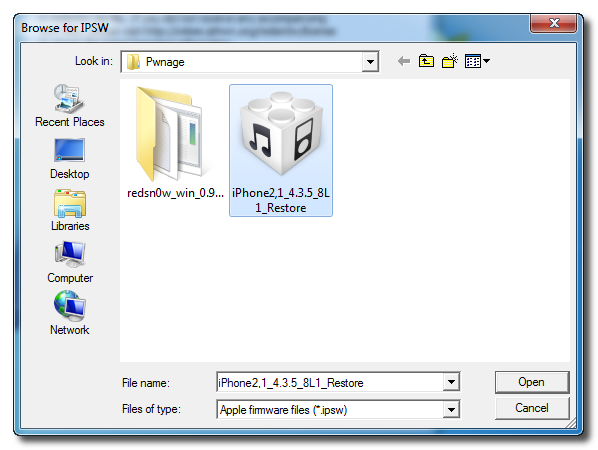

Select the 4.3.5 firmware ipsw we placed in the Pwnage folder on our desktop then click Open.

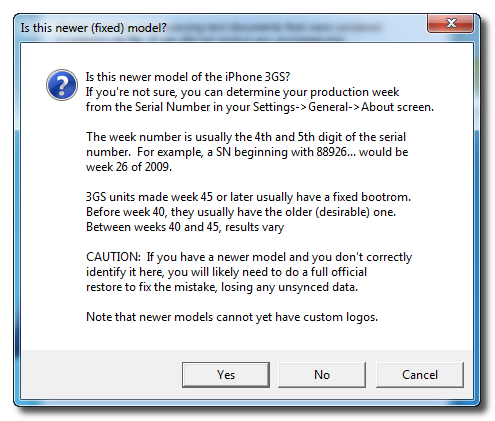

You will be prompted to indicate if this is a newer model of the iPhone 3GS. If you're not sure you can determine follow this tutorial to determine which bootrom you have.


Step Six
Once the firmware has been verified click the Next button to continue.


Step Seven
RedSn0w will now prepare the jailbreak data


Step Eight

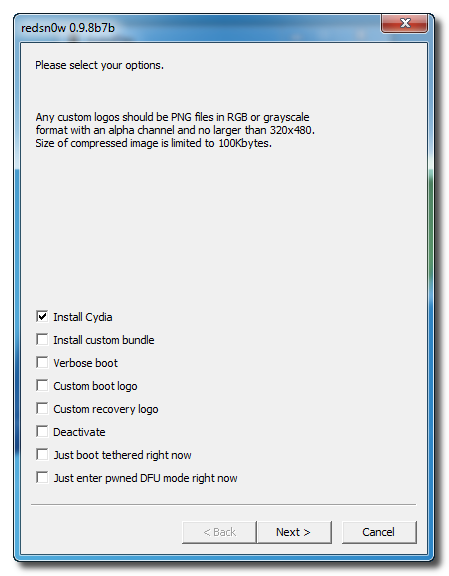

From this window you can select the jailbreak options you would like. Make sure Cydia is selected and click the Next button to continue


Step Nine

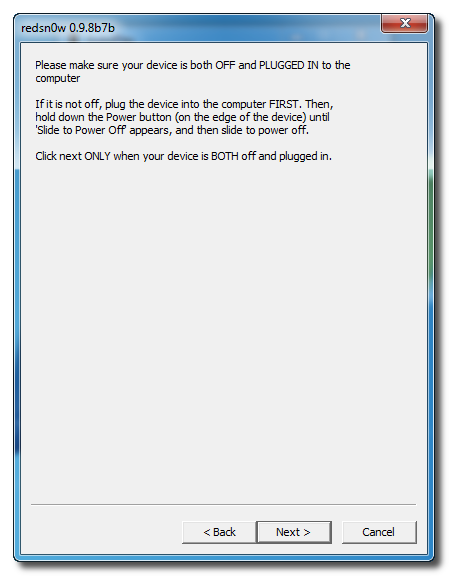

Please plug your iPhone into the computer and make sure its OFF then click the Next button


Step Ten

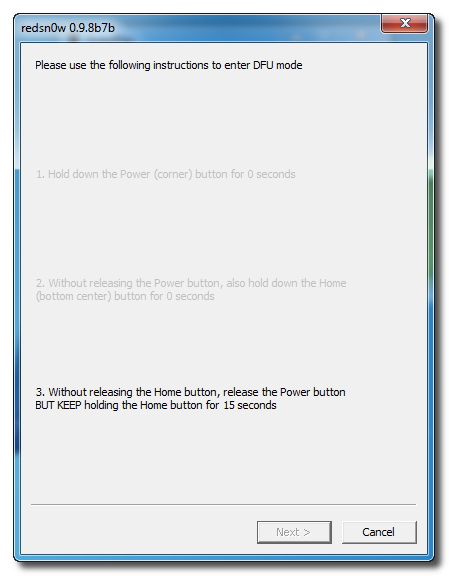

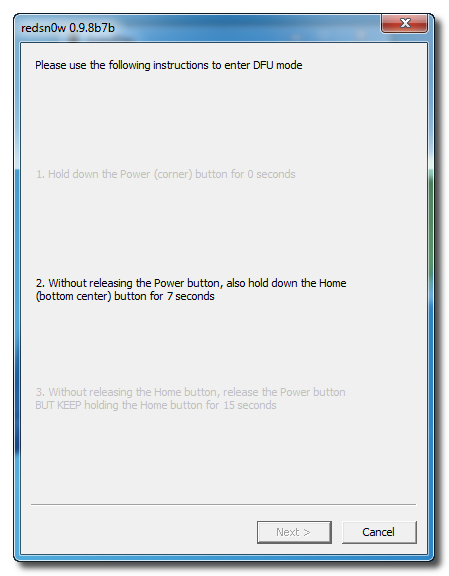

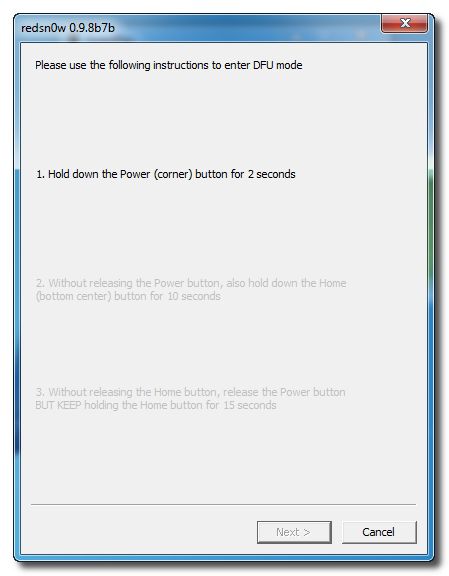

RedSn0w will now guide you through the steps to get into DFU mode. You can find more help with DFU mode here


Hold down both the Home button and the Power button for 10 seconds.


Release the Power button and continue holding the Home button until RedSn0w detects the device.


Step Eleven
Your iPhone will now reboot


Step Twelve

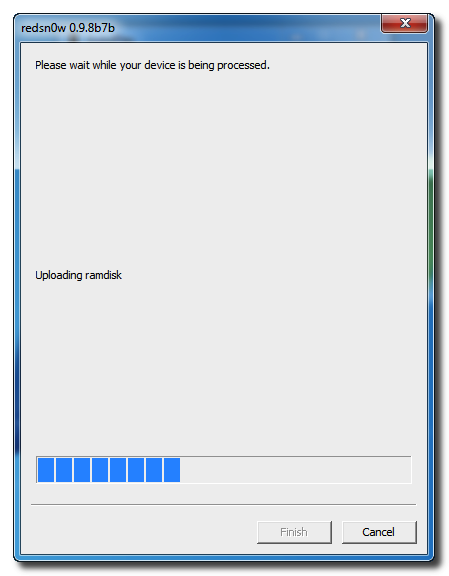

RedSn0w will then begin uploading the new RAM Disk and Kernel.


Step Thirteen

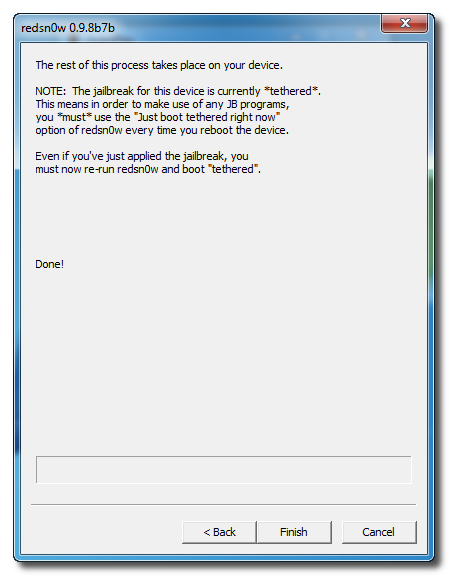

Once this is complete you will be notified that RedSn0w is done. Click the Finish button. When your iPhone finishes rebooting (5 minutes or so) it will be jailbroken with Cydia on the SpringBoard.


*As usual a big thanks to the iPhone Dev-Team for their hard work and contribution to the iPhone community.
**Windows 7 users can try running RedSn0w as an administrator in Windows Vista or XP compatibility mode if you experience any difficulties.


BOOT TETHERED

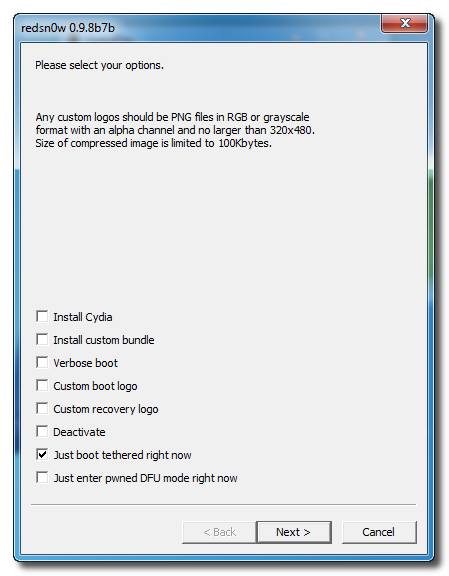

Once RedSn0w has finished jailbreaking your device you will need to boot it tethered if you have a newer iPhone. Rerun RedSn0w and this time select Just boot tethered right now from the list of options instead of installing Cydia.
