How to Jailbreak Your iPhone 3GS Using RedSn0w (Windows) [5.0]

POST

MAIL

Posted October 18, 2011 at 8:04am by iClarified

These are instructions on how to jailbreak your iPhone 3GS on the iOS 5.0 firmware using RedSn0w for Windows. The Mac tutorial is here.

This procedure will cause you to upgrade your baseband potentially ruining your chances for an unlock. Please wait until we have posted a tutorial on how to update to iOS 5 using a custom ipsw if you need an unlock. The jailbreak is also tethered for all devices except the old bootrom iPhone 3GS which means you will need to connect your device to the computer each time you reboot. Finally, it may be prudent to save your SHSH Blobs by following this tutorial before continuing.

If you want to jailbreak a lower firmware version you can find the appropriate tutorial here.

Step One

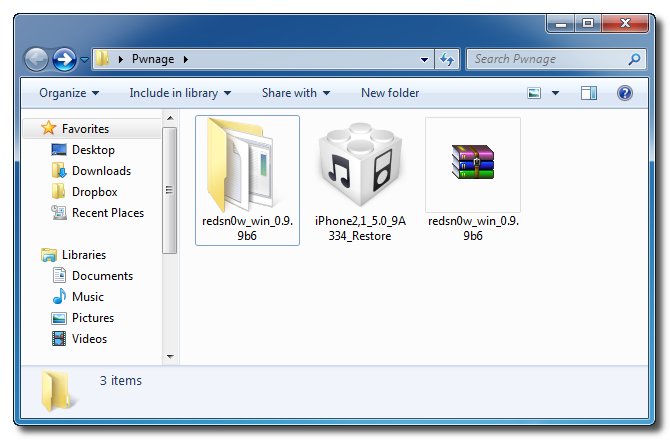

Create a folder on your desktop called Pwnage

Download RedSn0w 0.9.9b6 from here and place it in the Pwnage folder. Likewise, download the 5.0 firmware from here and place it in the Pwnage folder. (Note: you do not need to download the 5.0 firmware if you are already on iOS 5.0)

Extract the RedSn0w zip file by double clicking it.

How to Jailbreak Your iPhone 3GS Using RedSn0w (Windows) [5.0]

Step Two: (Skip this step if you're on iOS 5 already)
Connect your iPhone to the computer and launch iTunes.

Select your iPhone from the list of devices on the left. Now hold down Shift and click the Restore button. Restore is preferred as it won't create any wasted space on your iPhone.

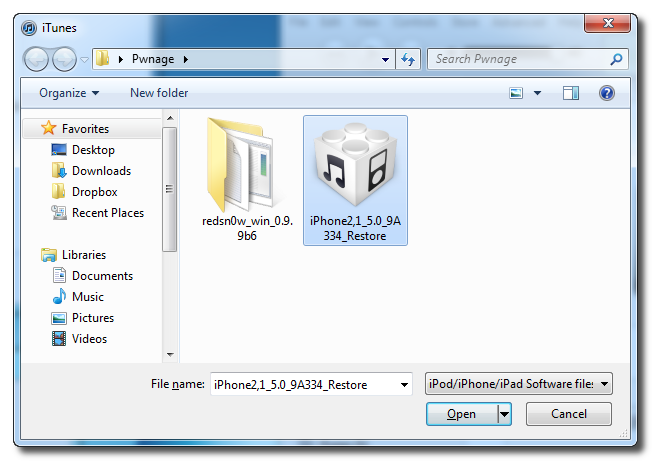

Navigate to the Pwnage folder on your desktop and select the 5.0 firmware ipsw. Click the Choose button to continue.

iTunes will now update your iPhone to the new firmware.

Step Three
Launch the redsn0w application from the redsn0w folder we extracted earlier.

**Windows 7 users may want to try running the redsn0w executable mode as an administrator in Windows Vista compatibility. You can do this by right clicking the executable and selecting Properties from the contextual menu.

Step Four

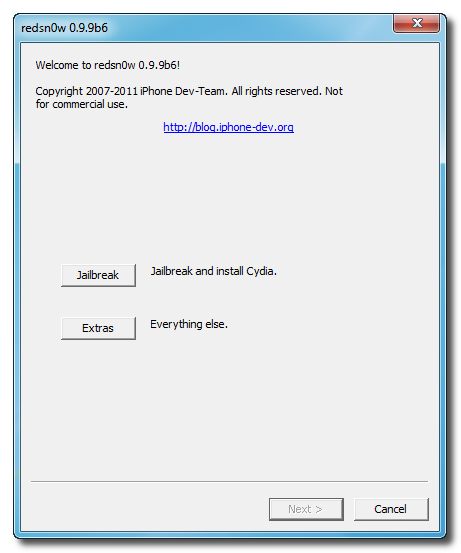

Once RedSn0w opens click the Jailbreak button

Step Five
Plug your iPhone into the computer and make sure its OFF then click the Next button

Step Six
RedSn0w will now guide you through the steps to get into DFU mode. You can find more help with DFU mode here

Hold down both the Home button and the Power button for 10 seconds.

Release the Power button and continue holding the Home button until RedSn0w detects the device.

Step Seven
Your iPhone will now reboot

Step Eight

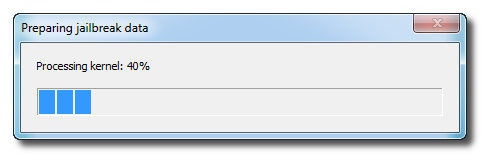

RedSn0w will prepare the jailbreak data.

Step Nine

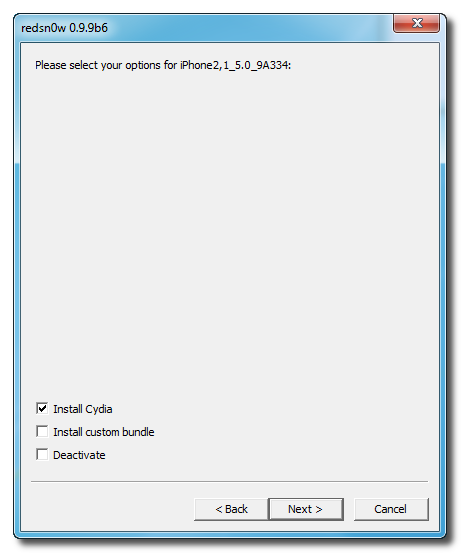

Select Cydia from the list of options and click Next.

Step Ten

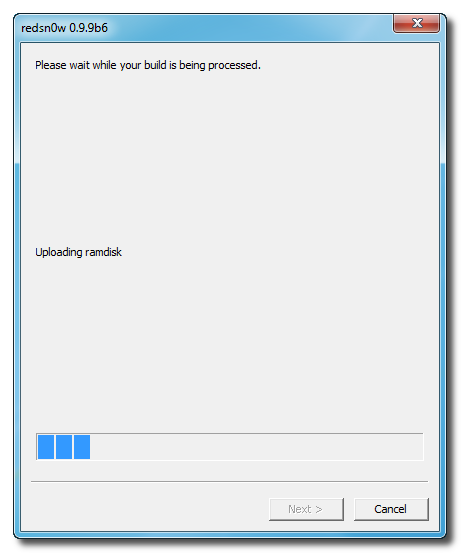

Your iPhone will now be rebooted again and RedSn0w will begin uploading the new RAM Disk and Kernel.

Step Eleven

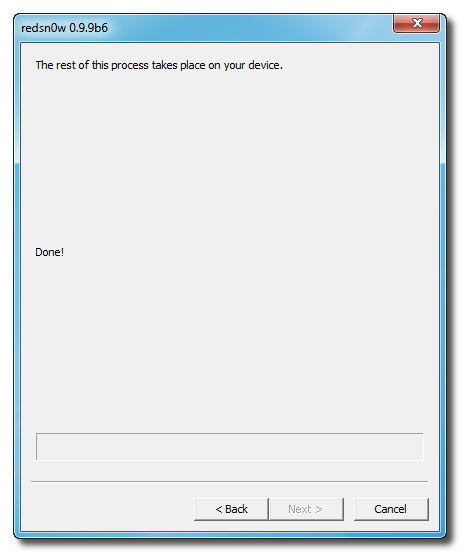

Once this is complete you will be notified that RedSn0w is done. When your iPhone finishes rebooting (5 minutes or so) it will be jailbroken with Cydia on the SpringBoard.

BOOT TETHERED
Once you have jailbroken you will need to rerun redsn0w to boot tethered.

Step One
From the main RedSn0w menu click the Extras button.

Step Two
Select Just boot from the Extras menu to just boot tethered.

*As usual a big thanks to the iPhone Dev-Team and Geohot for their hard work and contribution to the iPhone community.
